Ultrasonic Snow Depth Sensor

1.Ultrasonic Snow Depth Sensor Product Introduction

Ultrasonic Snow Depth Sensor is an ultrasonic sensor that provides a non-contact method for accurate, continuous and contactless recording of snow depth.Ultrasonic Snow Depth Sensor is a sensor that uses ultrasonic technology to detect the distance to the snow surface. The sensor adopts an integrated capacitive electrostatic transducer probe design with high sensitivity, strong anti-interference ability and high accuracy.

2. Ultrasonic Snow Depth Sensor Technical Specifications

Power supply: DC12V

Working environment: -40-60℃, humidity ≤100% without condensation

Communication interface: RS485

Working current: 18mA DC12V

Minimum data interval: 0.2S

Shell material: aluminum alloy

Measuring range: 0-2000mm

Measurement resolution: 1mm

Accuracy: 1mm±0.2%

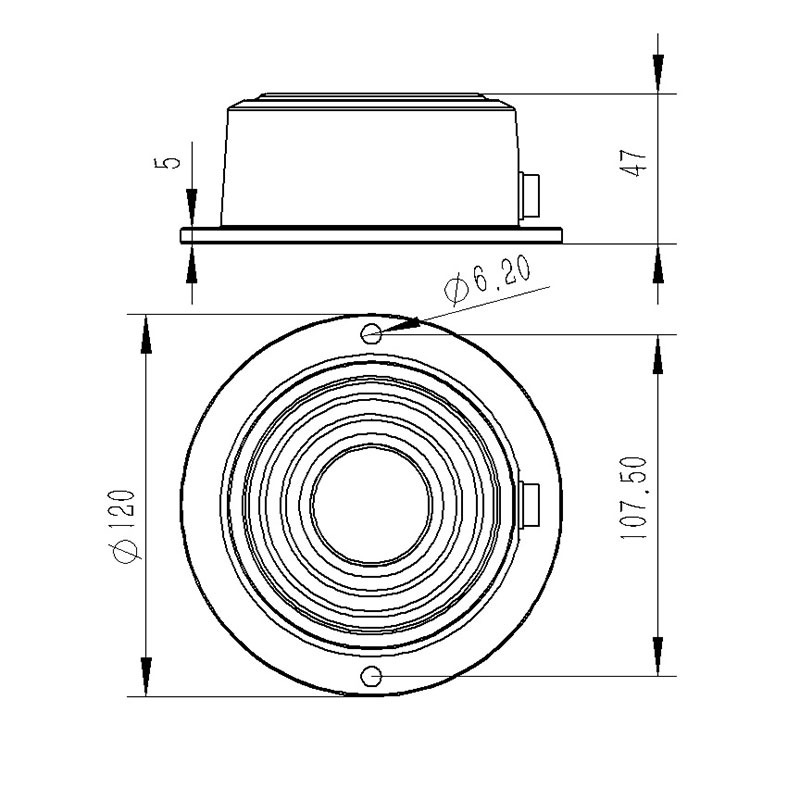

3. Ultrasonic Snow Depth Sensor Product Dimensions

4.Use of Ultrasonic Snow Depth Sensor

The equipment installation site should be selected in an open area.

The equipment installation cross arm should be at least 1M

There should be no obstructions above the device.

The distance between the device and the ground plane should be within 20cm-200cm. To ensure measurement accuracy, the recommended distance is 100cm.

The equipment mounting bracket should be kept horizontal. The reflective ground of the sensor should be level. The reflection point should be within a radius of 1 meter to avoid interference from weeds.
