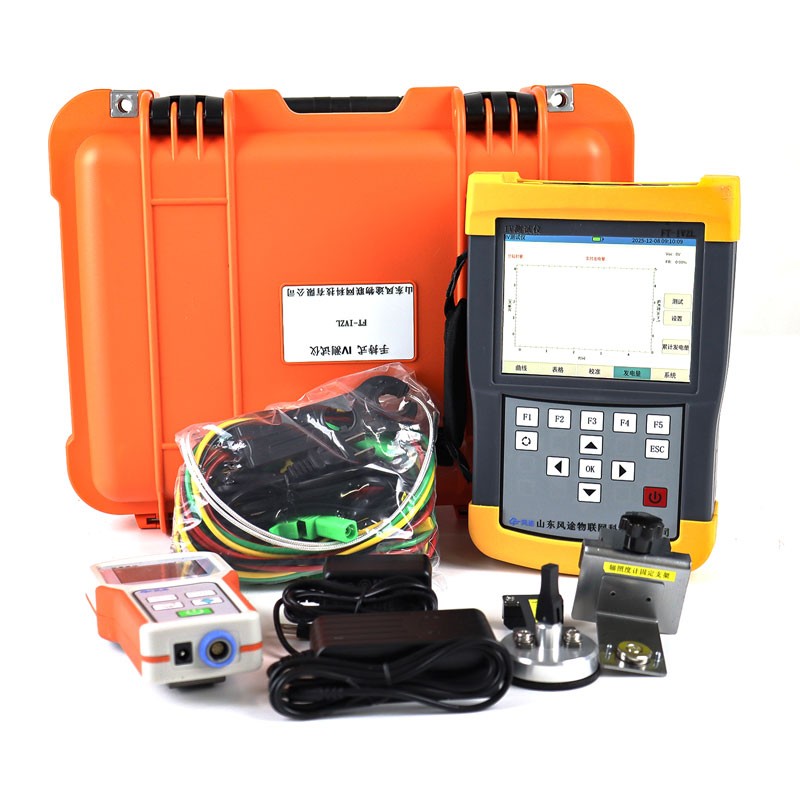

photovoltaic testers 400V/20A Range Meets the On-Site Testing Needs of Photovoltaic Modules

photovoltaic testers adopts integrated packaging technology, with a voltage range of 400V and a current range of 20A, capable of testing the open-circuit voltage, short-circuit current, and maximum power of a 1000W photovoltaic module. Equipped with a high-precision radiometer and temperature sensor, it completes single-module testing in 10 seconds, suitable for third-party testing and power plant operation and maintenance scenarios.

photovoltaic testers is a core device for on-site testing of photovoltaic power plants, used to measure the volt-ampere characteristic curves of solar cell modules and arrays. This device can perform voltage testing up to 400V and current testing up to 20A, covering the full-range testing needs of a 1000W photovoltaic module. By measuring the output current of the module under different voltage conditions, photovoltaic testers can generate a complete IV characteristic curve, accurately reflecting key electrical performance parameters such as the module's open-circuit voltage, short-circuit current, maximum power point, and fill factor. These data are crucial for evaluating the power generation efficiency of photovoltaic modules and determining their health status.

In actual operation and maintenance scenarios of photovoltaic power plants, photovoltaic testers demonstrates significant practical advantages. The equipment adopts integrated packaging technology, resulting in a compact structure and a clearly defined user interface. Testing of a single module or string can be completed within 10 seconds. This testing speed greatly improves on-site operational efficiency, allowing maintenance personnel to complete performance screening of a large number of modules in a short time. Equipped with a high-precision radiometer and temperature sensor, the equipment can simultaneously collect environmental irradiance and temperature data under natural sunlight conditions, providing accurate environmental compensation for test results. The entire unit features high-precision capacitive and resistive loads, and with dedicated IV curve analysis software, it can provide high-definition IV curve analysis and support continuous IV scanning.

photovoltaic testers has applications covering multiple stages of photovoltaic power plants. In daily operation and maintenance, it can be used for module health diagnosis, identifying typical faults such as hot spots, microcracks, and power degradation. During the photovoltaic project acceptance phase, it can be used for string power testing and STC standard power conversion rate verification. Third-party testing institutions can use this equipment as a standard configuration for power plant performance evaluation, and research institutions can also use it for module performance comparison and experimental research.

The photovoltaic testers is easy to operate, and its one-click data export function lowers the barrier to entry for on-site personnel. Its lightweight design allows for one-handed operation, making it easy to carry to complex terrains such as rooftops, mountains, and deserts for on-site testing. Its precise 400V/20A range is compatible with the full-range testing needs of mainstream 1000W photovoltaic modules on the market. Overall, the photovoltaic testers achieves a good balance between testing accuracy, operational efficiency, and portability, meeting the diverse testing needs of photovoltaic power plants, from module sampling to system evaluation.
