Ground Penetrating Radar: A Reliable Solution for Detecting Abandoned Mines and Ensuring Engineering Safety

In areas with a long history of mineral resource development, a large number of unregistered or incompletely recorded abandoned mines are hidden underground, posing potential threats to engineering construction and geological safety. In mining areas severely affected by illegal and excessive mining, these hidden dangers are particularly prominent. Identifying the distribution range and burial depth of goaf roadways has become crucial to ensuring engineering safety, and Ground Penetrating Radar technology provides a reliable solution for this.

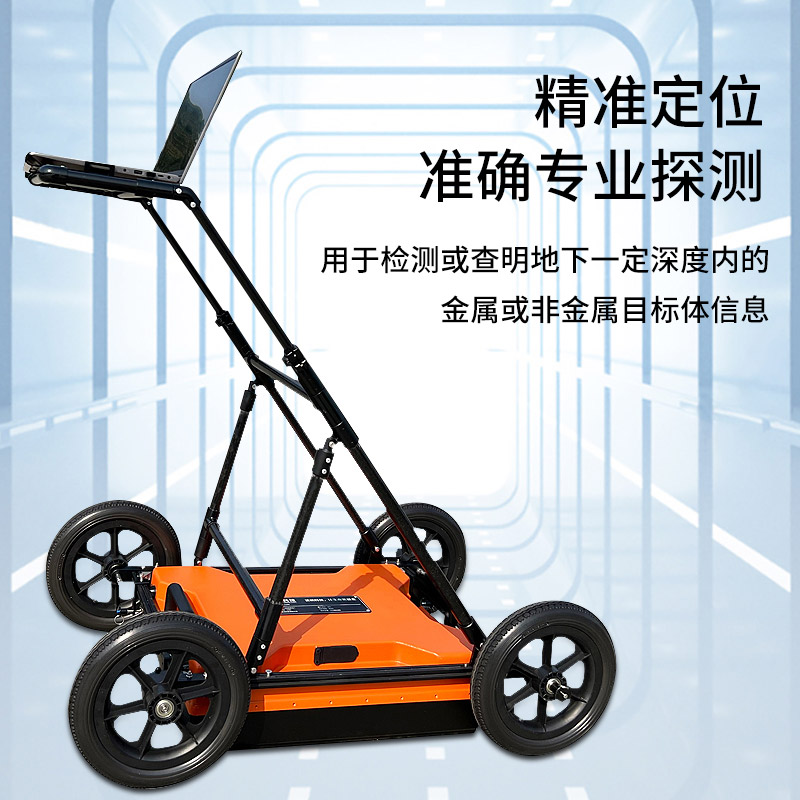

Ground Penetrating Radar, a broad-spectrum electromagnetic method developed in the 1970s, has become a major tool for shallow geophysical exploration due to its characteristics of being economical, non-destructive, fast, and intuitive. Its principle is similar to that of air-search radar, operating through a pair of antennas: the transmitting antenna emits high-frequency electromagnetic pulse waves, which are reflected when encountering underground physical property interfaces (such as mine boundaries). The receiving antenna captures the reflected signals and records the amplitude and travel time. Moving the antennas along the survey line can form a radar profile. When the wave velocity is known, the depth of the reflector can be inferred using the formula z = (vt)/2 (where z is the depth, v is the wave velocity, and t is the time).

Abandoned mines change the physical properties of underground media. The air, cavities, or fillings in the roadways differ from the surrounding rock mass in terms of dielectric constant and electrical conductivity. This electromagnetic difference not only causes the reflection of electromagnetic waves but also leads to attenuation and phase changes, providing a physical basis for identifying mines.

However, detection requires standardized operations: first, collect geological and mining history data to determine the possible depth and trend of the mines. During detection, the transmitting and receiving antennas move synchronously along the survey line, and the spacing is selected according to the target depth—the greater the depth, the larger the spacing. For data collection, the antennas must be kept stable, and the position of the survey line and topographic changes should be recorded. In complex areas, multi-line cross-detection is adopted to improve accuracy.

After processing the original data, the position and shape of the mine can be accurately determined based on the characteristics of the reflected wave event axes, energy attenuation, and phase changes in the radar profile.
