location：Home>Products>Atmospheric monitoring>Gas Sensors>Nitric oxide sensor

Nitric oxide sensor

Nitric oxide sensor

Model：FT-QT11

Brand：fengtu

Nitric oxide sensor has high sensitivity and selectivity to NO, and has the characteristics of long life, fast response and stable baseline.

mail

Get a Free Quote

Related products

1. Nitric oxide sensor technical parameters

Nitric oxide sensor has high sensitivity and selectivity to NO, and has the characteristics of long life, fast response and stable baseline.

model	Measurement parameters	Measuring range	Accuracy	Resolution	unit	Operating temperature	Operating humidity
QT1	Carbon monoxide	0-1000PPM	±2PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT1S	Carbon monoxide	0-20PPM	≤±5%	0.01PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT2	Sulfur dioxide	0-20PPM	±1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT2S	Sulfur dioxide	0-1PPM	≤±5%	0.001ppm	PPM	-20℃-+50℃	10-95%RH non-condensing
QT3	Nitrogen dioxide	0-20PPM	±1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT3S	Nitrogen dioxide	0-1PPM	≤±5%	0.001ppm	PPM	-20℃-+50℃	10-95%RH non-condensing
QT4	ozone	0-20PPM	±1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT4S	ozone	0-1PPM	≤±5%	0.001ppm	PPM	-20℃-+50℃	10-95%RH non-condensing
QT5	Oxygen content	0~30%VOL	±3%FS	0.1%VOL	VOL	-20℃-+50℃	5-95%RH non-condensing
QT6	Negative oxygen ions	0～100,000/cm³	±10%	10pcs/cm³	Pieces/cm³	+10℃-+70℃	10-70%RH without condensation
QT7	Hydrogen sulfide	0-100PPM	±2PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT8	Methane	0-100%LEL	≤±3%	1%LEL	LEL	-20℃-+50℃	10-95%RH non-condensing
QT9	TVOC	0-100PPM	55±15 nA/ppm	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT10	Ammonia	0-100PPM	±4PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT11	Nitric Oxide	0-250PPM	-2~10PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT12	formaldehyde	0-10PPM	<1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing

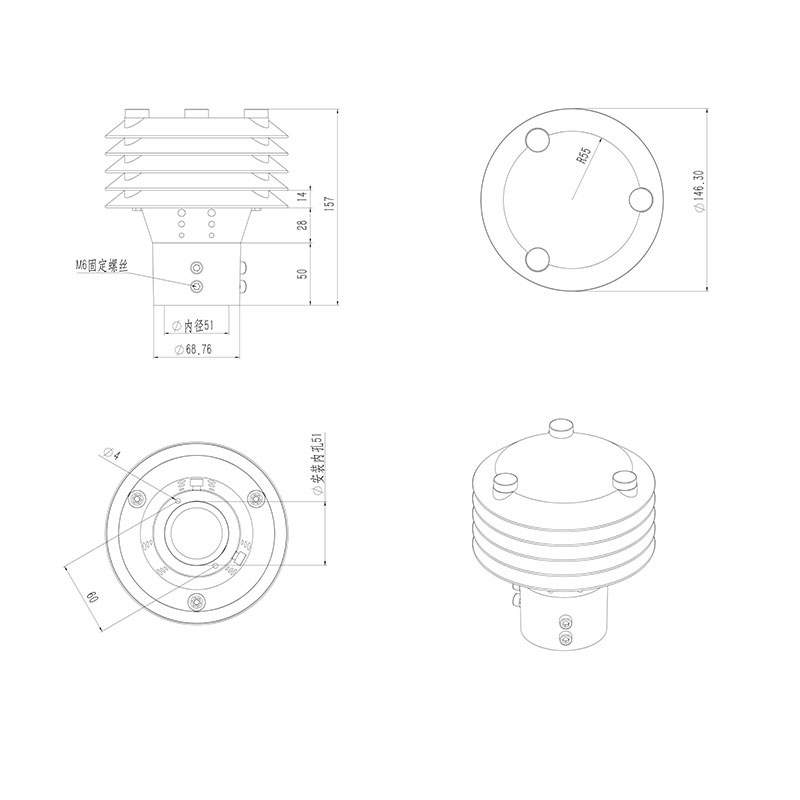

2. Nitric oxide sensor product size diagram

Nitric oxide sensor product size diagram
