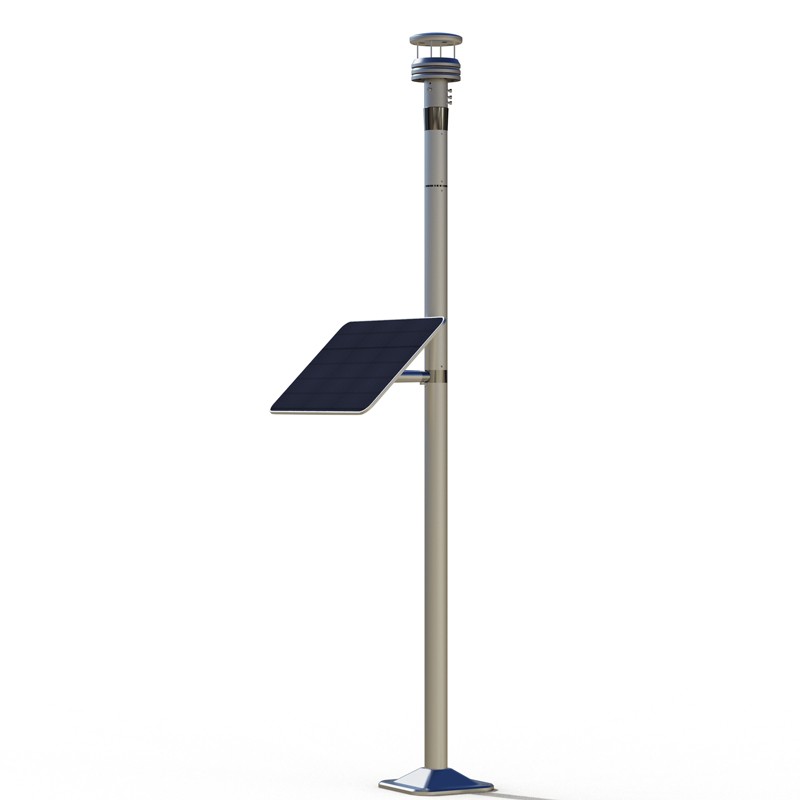

Two parameter integrated weather station

1、Two parameter integrated weather station Product Overview

Two parameter integrated weather station utilizes ultrasonic sensing technology to focus on the real-time monitoring of wind speed and wind direction, meeting the need for continuous meteorological data collection in field environments.Two parameter integrated weather station features a lightweight yet high-strength aluminum alloy main structure, with an anodized surface finish that ensures corrosion and aging resistance. It integrates a multi-parameter meteorological sensor and utilizes a concealed power supply design; this streamlined cabling reduces the risk of tampering or accidental damage and enables long-term, unattended operation. It is suitable for a wide range of meteorological monitoring applications, including ecology, agriculture, geology, and disaster prevention.

Its integrated design compactly houses multiple meteorological monitoring units, eliminating the need for the complex assembly associated with modular systems. Deployment is rapid and requires minimal cabling, allowing a single person to complete on-site installation.

The concealed power supply system ensures a clean, unobtrusive appearance while minimizing the risk of damage from external forces or theft.

2、Two parameter integrated weather station Features and Characteristics

★ Features a concealed ultrasonic probe design at the top to prevent interference from accumulated rain or snow and obstruction by natural wind; the product holds multiple certifications, including invention patents, utility model patents, and software copyrights.

★ Operates by emitting continuous frequency-modulated ultrasonic signals and measuring relative phase shifts to detect wind speed and direction.

★ Utilizes advanced sensing technology for real-time measurement with no minimum start-up wind speed requirement.

★ Modular probe design eliminates issues with loosening or accuracy loss during transport and installation.

★ Integrated design combining wind speed and wind direction measurement.

★ Strong anti-interference capability; equipped with a watchdog circuit and automatic reset function to ensure stable system operation.

★ Highly integrated with no moving parts, resulting in zero mechanical wear.

★ Maintenance-free with no on-site calibration required; the integrated design minimizes wear, extends service life, and ensures rapid response.

★ Sensor constructed from 304 stainless steel, offering high strength, oxidation resistance, and corrosion resistance.

★ 2.1-meter mast featuring a lightweight design; the mast (including the base) is made of aluminum alloy with a hardened aluminum oxide protective coating. It is resistant to salt spray, corrosion, and UV radiation, and withstands heavy rain and dust storms, ensuring stable all-weather operation while reducing overall equipment weight.

★ Concealed power supply design with no external battery; supports one-touch power on/off. Custom-made solar panel features a laminated glass design; the backplate and cantilever bracket utilize a lightweight, injection-molded design for easy installation, high strength, sun protection, and aging resistance. Component specifications: 30W power output; 24Ah lithium battery capacity.

★ Monitoring main unit is housed internally at the top of the mast (concealed design) with a carbon fiber casing.

★ Packaging utilizes a thickened honeycomb cardboard box with high-resilience foam lining, providing comprehensive protection to ensure the equipment arrives undamaged and complete. Supports Modbus-RTU-RS485 sensor expansion; supports expansion modules for LED displays, Ethernet, Wi-Fi, and optical transceivers.

Features reverse polarity protection, sensor current limiting, signal line over-voltage/current limiting, and signal line surge protection.

The platform supports data forwarding via multiple protocols, including HJ-212, TCP short-lived connections, and HTTP.

★ Supports QR code-based after-sales maintenance and device traceability.

IoT: Supports universal 4G connectivity (compatible with all three major carriers) with a 3-year data plan included.

Solar charging management: MPPT (Maximum Power Point Tracking).

Low-power data collector: Power consumption under 50mA.

Supports remote OTA firmware upgrades.

Supports data export via USB flash drive.

Supports data storage.

3、Two parameter integrated weather station Technical Specifications

1. ★Wind Speed: Ultrasonic measurement principle; measurement range 0–60 m/s; resolution 0.01 m/s; accuracy ±0.1 m/s + 0.01V

2. ★Wind Direction: Ultrasonic measurement principle; measurement range 0–360°; resolution 1°; accuracy ±2°

3. Data upload interval: Adjustable from 1 to 1,000 minutes

4. Manufacturer holds ISO certifications for Quality Management Systems, Environmental Management Systems, and Occupational Health and Safety Management Systems

5. Manufacturer holds a computer software registration certificate

6. Manufacturer is rated as a 3A-level credit enterprise

4、Two parameter integrated weather station Cloud Platform Overview

The cloud platform displays the online status of all devices associated with the current user.

★ It displays weather conditions for the device's location, including location details, time, weather type, temperature, wind speed, and wind direction.

It features real-time data monitoring, displaying the latest telemetry data for all parameters.

It supports historical data viewing; users can select specific parameters and timeframes to generate line charts and export the filtered historical data.

It supports threshold-based alarms; when a parameter falls outside the user-defined threshold range, the platform displays real-time alarm information for the specific device and parameter, accompanied by an audio alert.

It includes a location tracking function; by inputting the device's latitude and longitude, the device's location can be marked on a map.

It offers monitoring capabilities; once a camera is linked to the device, users can monitor the device via the cloud platform.

In addition to large-screen displays, data can be viewed anytime, anywhere via mobile browsers.

★ It supports SMS alarms, sending text messages to designated mobile numbers when readings fall outside the threshold range. A single account allows for simultaneous monitoring of multiple devices for threshold violations (exceeding or falling below limits).

★ It supports WeChat alarms; once the account is linked to a WeChat ID, notifications are sent to the official service account when readings fall outside the threshold range.
