Laser snow depth monitor is applicable to snow depth observation in meteorology, traffic and disaster warning

Laser snow depth monitor is an automatic monitoring device that adopts laser measurement technology. It can measure the snow depth within a range of 0.05 to 5 meters with millimeter-level accuracy within a few seconds. This instrument overcomes the limitations of traditional sensors and is widely used in fields such as weather forecasting, road and airport monitoring, and avalanche prediction.

Laser snow depth monitor, also known as snow depth monitor or snow depth automatic weather station, is a professional instrument that realizes the automatic continuous monitoring of snow depth based on laser ranging technology. This device is mainly used to accurately and quickly obtain data on the depth of surface snow cover. Its measurement results can provide key basis for meteorological services, transportation operation and maintenance, and disaster early warning.

The core of the instrument adopts the principle of laser ranging. It emits laser beams towards the snow surface and receives the light signals reflected back from the snow surface. By calculating the round-trip time of the beam, it precisely calculates the distance between the sensor and the snow surface. By comparing the installation height with the measured distance, the snow depth value can be obtained. This technology overcomes the shortcomings of ultrasonic, electromagnetic wave or gravimetric sensors that are difficult to accurately identify and measure due to the complex physical properties of snow, and realizes direct and non-contact detection of the snow layer.

In terms of technical performance, the measurement range of typical laser Laser snow depth monitor is between 0.05 meters and 5 meters, and the resolution can reach the millimeter level. A complete measurement process is usually completed within a few seconds, which can meet the business requirements of high-frequency and continuous observation. Its high-precision and rapid response characteristics enable it to effectively capture the subtle changes in snow depth and the rapid accumulation process.

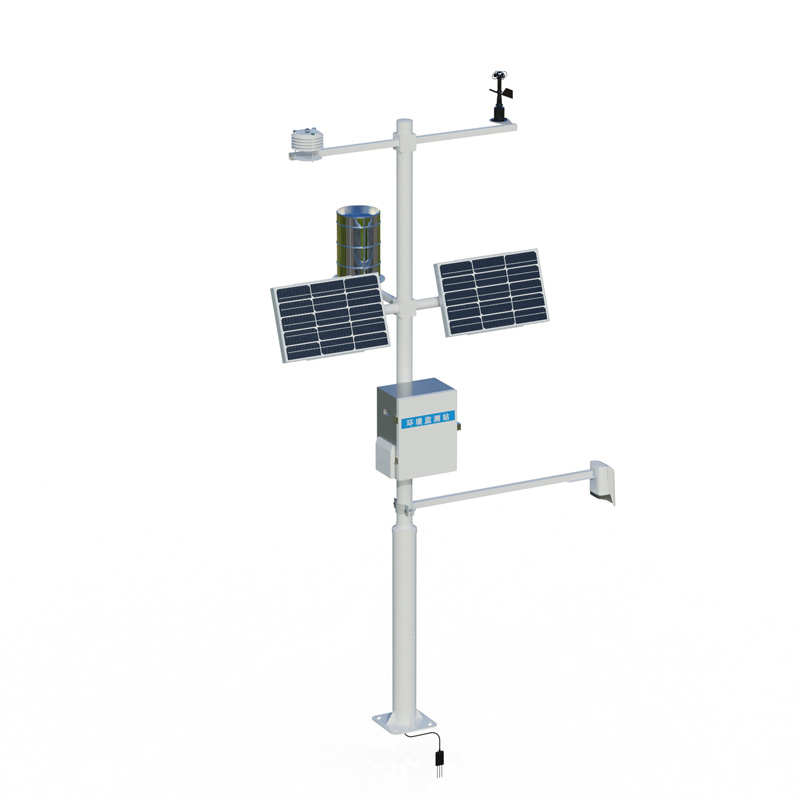

This instrument is designed for unattended, automated continuous operation. It is usually a component of an automatic weather station, integrating a data collector and a communication module, which can achieve real-time collection, processing and remote transmission of observation data. This makes it possible to conduct long-term and stable snow depth monitoring in remote or harsh environments.

The application fields of Laser snow depth monitor are extensive. In the field of meteorological forecasting, it provides accurate snow depth data for short-term weather forecasts, climate analysis, and early warnings of cold wave and ice and snow disasters. In the field of transportation, the instruments are deployed along highways, railways and airports, and their monitoring data directly support snow removal decisions, road traffic safety assessment and flight scheduling. In terms of disaster prevention and control, continuous and high-precision snow depth data are important input parameters for avalanche risk assessment and early warning models in mountainous areas. In addition, this instrument is also used in hydrological monitoring, agricultural frost damage assessment and the new energy field, such as snow load monitoring in photovoltaic power stations.

Overall, laser Laser snow depth monitor, with its advantages of high precision, high reliability and automation, has become a key device in modern snow depth monitoring systems. It provides a reliable data foundation for multiple industries to address challenges related to ice and snow, and plays a continuous role in enhancing the efficiency of public services and ensuring safe operation.
