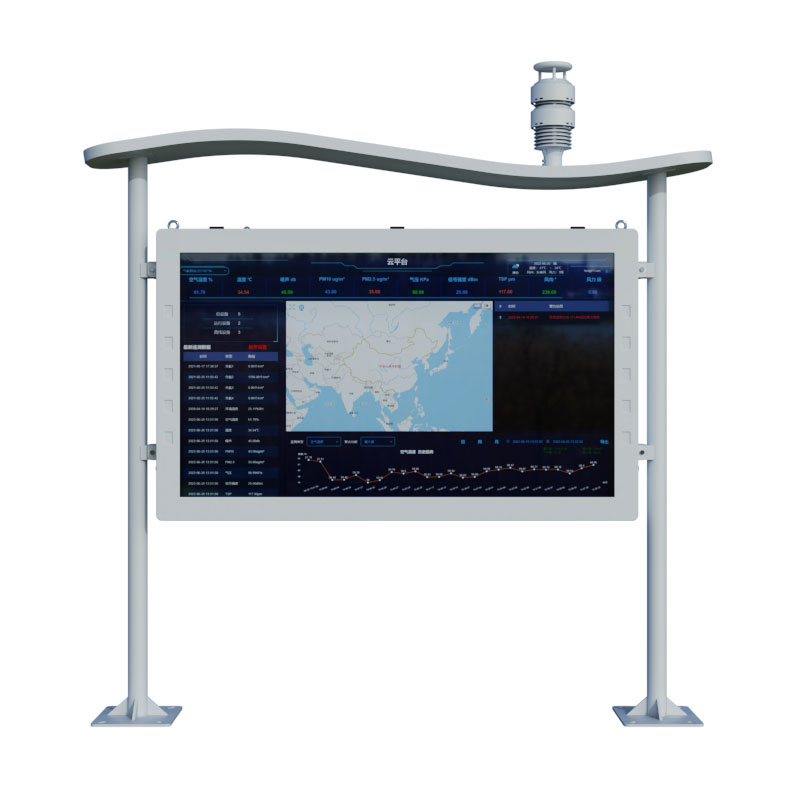

Negative oxygen ion monitoring system

1、Negative oxygen ion monitoring system Product Overview

Negative oxygen ion monitoring system can monitor the concentration of negative oxygen ions in the air and display the data on the color screen in real time.The Negative oxygen ion monitoring system provides round-the-clock monitoring of negative oxygen ion concentrations in the air. It also supports the expansion of monitoring parameters based on user requirements—such as air temperature, humidity, PM2.5, PM10, atmospheric pressure, oxygen levels, noise, wind speed, and wind direction. Featuring an integrated sensor design with no moving mechanical parts, the device offers high precision and a long service life.

Data can be viewed locally via a full-color LCD screen or accessed in real-time through a remote cloud platform, web interface, or WeChat official account.

Users can customize and add audio tracks for local playback, including voice announcements triggered when readings exceed set limits.

2、Negative oxygen ion monitoring system Applications

Tourist attractions, eco-estates, wetland parks, waterfall parks, forest parks, nature reserves, sales centers, and schools.

3、Negative oxygen ion monitoring system Technical Specifications

1. Wind speed: Ultrasonic measurement principle; 0–60 m/s (±0.1 m/s); resolution 0.01 m/s

2. Wind direction: Ultrasonic measurement principle; 0–360° (±2°); resolution 1°

3. Air temperature: Diode junction voltage measurement principle; -40 to +60°C (±0.3°C); resolution 0.01°C

4. Air humidity: Capacitive measurement principle; 0–100% RH (±0.3% RH); resolution 0.1% RH

5. Atmospheric pressure: Piezoresistive measurement principle; 300–1100 hPa (±0.25%); resolution 0.1 hPa

6. PM2.5: Light scattering measurement principle; 0–1000 µg/m³ (±10%); resolution 1 µg/m³

7. PM10: Light scattering measurement principle; 0–1000 µg/m³ (±10%); resolution 1 µg/m³ 8. Noise: Capacitive measurement principle; range: 30–120 dB (±1.5 dB); resolution: 0.1 dB

9. Negative oxygen ions: Cylindrical electrode aspiration measurement principle; range: 0–100,000 ions/cm³ (±10%); resolution: 1 ion/cm³

10. Oxygen content: Electrochemical measurement principle; range: 0–25% Vol (±3% FS); resolution: 0.1%

11. Screen: Resolution 1920 (RGB) × 1080 (FHD); refresh rate 120 Hz; brightness 1500–2500 cd/m²

12. Pole: Carbon steel dual-column structure; withstands Category 15 typhoons

13. Operating environment: Temperature -40°C to 60°C; humidity 0%–100%

14. Data storage: Capable of storing one year of raw monitoring data

15. Data transmission: 4G / Fiber optic

16. Power supply: 220V mains power

17. Power consumption: 500 W

4、Negative oxygen ion monitoring system Product Features

1.  Modular Design: The unit features a highly integrated modular design and standardized electrical layout; operational status is visible at a glance, facilitating rapid maintenance.

2.  Waterproofing: The main structure is constructed from 2–3mm carbon steel and utilizes composite sealing strips to ensure multi-angle waterproofing.

3.  Dustproofing: The base is equipped with a filtration system capable of filtering dust particles larger than 5μm; the filter media can be quickly replaced from the outside without requiring professional technicians.

4.  Lightning & Leakage Protection: Built-in lightning protection and earth-leakage circuit breakers safeguard both the equipment and the safety of nearby personnel.

5.  Durable Glass: Uses high-transparency, high-strength, heat-resistant tempered glass that is fireproof, scratch-resistant, and explosion-proof.

6.  Audio: Features high-power, waterproof outdoor speakers with a dual-channel design, delivering clear, immersive stereo sound.

7.  Ambient Light Sensor: A built-in light sensor detects changes in ambient lighting and automatically adjusts screen brightness.

8.  Display: Utilizes an LCD screen with a 50,000-hour lifespan; it is eco-friendly, energy-efficient, and offers high dynamic contrast for sharper image quality.

9.  Heat Dissipation: Employs industrial-grade centrifugal fans offering high airflow, high speed, and low noise; built-in temperature sensors monitor internal heat, allowing the system to adjust response thresholds and speeds based on the environment for precise temperature control and energy efficiency.

10. Timer Switch: Built-in programmable timer allows for scheduled power-on and power-off times.

11. Full-Color Interface: Automatically launches the meteorological monitoring platform upon startup (display interface supports limited customization).

12. Optional Camera: Supports an optional camera, with the interface capable of displaying real-time camera feeds.

13. Integrated Sensors: Features an all-in-one integrated sensor module for easy installation and simple maintenance.

5、Negative oxygen ion monitoring system Cloud Platform Overview

1.  Client-Server (C/S) architecture platform; supports direct monitoring via mobile and PC browsers—no additional software installation required.

2.  Supports multi-account and multi-device logins.

3.  Features dashboards for displaying real-time and historical data.

4.  Utilizes cloud servers and cloud data storage; offers stability, reliability, scalability, and load balancing.

5.  Supports SMS alerts and threshold configuration.

6.  Supports map-based visualization and device information viewing.

7.  Supports data trend analysis (graphing).

8.  Supports data export to spreadsheet formats.

9.  Supports data forwarding (e.g., HJ-212 protocol, TCP forwarding, HTTP protocol).

10. Supports data post-processing functions.

11. Supports the execution of external JavaScript scripts.

12. Supports synchronization with local weather forecasts.
