Solar Radiation Sensor
Model：FT-FS1
Brand：fengtu
Get a Free QuoteRelated products
1.Solar Radiation Sensor Technical Specifications
Solar Radiation Sensor is a sensor used to monitor the total solar radiation. It adopts the photoelectric principle to measure the total radiation under sunlight.
Power supply: DC12V
Power consumption: 0.036W
Working environment: -20~65℃
Communication interface: RS485
Working current: 3mA@DC12V
Minimum data interval: 0.5S
2. Solar Radiation Sensor Parameters
Measurement element: irradiance
Measuring range: 0-2000W/m²
Resolution: 1W/m²
Response time: ≤10S
Accuracy: <±3%
Annual stability: ≤±3%
Zero drift: ≤6 W/m²

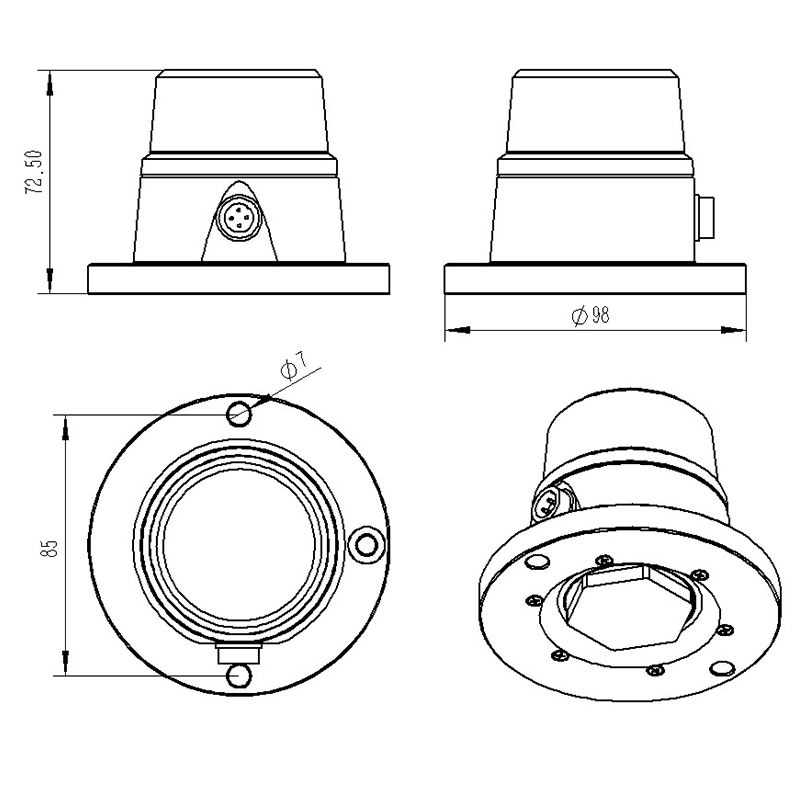

3. Solar Radiation Sensor Product Dimensions
