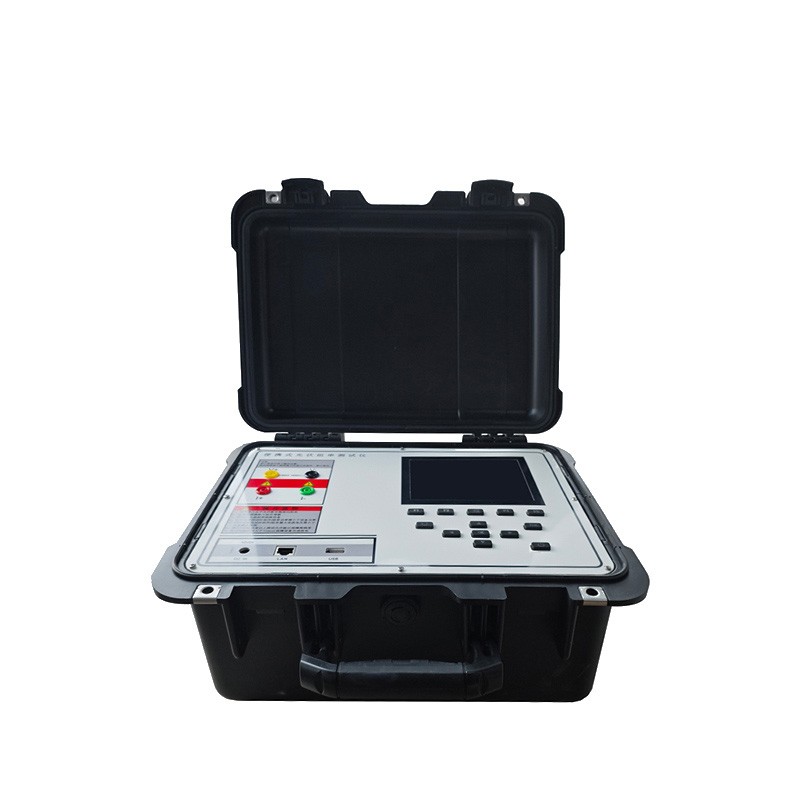

photovoltaic testers is designed for high-precision testing at large-scale photovoltaic (PV) power plants

photovoltaic testers supports high-voltage (1500V) and high-current (20A) testing, covering the requirements for 30kW PV strings. Integrating high-precision sensing and multiple safety protections, it rapidly and accurately measures PV module I-V characteristics, power output, and environmental parameters, making it suitable for both power plant O&M and third-party inspection scenarios.

photovoltaic testers is a core precision instrument for PV power plant O&M and module performance testing. It is primarily used to accurately measure key performance parameters of solar modules and strings, catering to on-site testing needs across residential, commercial/industrial, and large-scale utility PV plants. With a wide measurement range—supporting up to 1500V and 20A—it meets the testing requirements for PV strings up to 30kW. It stably captures critical data such as open-circuit voltage, short-circuit current, and maximum power, while simultaneously generating precise I-V and P-V curves to provide a clear visualization of the module's actual power generation performance.

photovoltaic testers features an all-in-one, portable design that is compact and easy to carry, making it ideal for operations in complex outdoor lighting and site conditions. It is equipped with a high-definition visual interface featuring an intuitive layout and a low learning curve, allowing personnel to get up to speed quickly. The testing process for a single module or an entire string takes only 5 seconds, and one-click data export significantly boosts efficiency for on-site inspections, acceptance testing, and troubleshooting. For outdoor scenarios, the device incorporates a universal STC conversion model, enabling accurate I-V characteristic testing even in low-light conditions; this overcomes the limitations of conventional equipment restricted to standard lighting environments, ensuring data validity across varying weather and times of day.

To guarantee measurement accuracy, photovoltaic testers is equipped with high-precision irradiance and temperature sensors. Paired with adjustable sensor mounts and a contact-type temperature probe, it accommodates various PV panel sizes and accurately captures environmental parameters—such as on-site irradiance and module backsheet temperature—providing comprehensive data to support module performance calibration. At the hardware level, the device incorporates a high-precision capacitive load module capable of accurately analyzing I-V curves and performing stable, continuous I-V scanning, thereby effectively enhancing data acquisition stability and accuracy. Regarding safety, it employs a high-voltage isolated power supply architecture and features multiple hardware protections—including safeguards against overvoltage, overcurrent, and overheating—alongside continuous testing self-protection mechanisms to mitigate safety risks during high-voltage operations. Equipped with a high-capacity lithium battery, the device supports prolonged outdoor testing with reliable endurance, fully meeting the requirements for large-scale, routine inspections at photovoltaic power plants; it is a preferred choice for third-party testing agencies and O&M providers.
