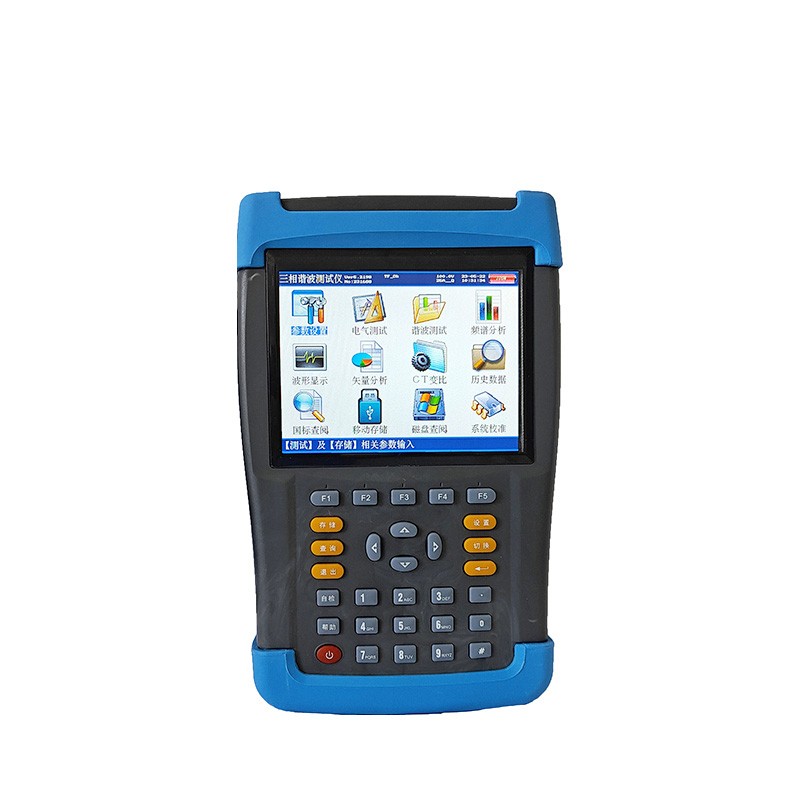

Power Quality Analyzers Capable of precisely detecting common grid issues such as waveform distortion, harmonics, and three-phase unbalance, this device supports the measurement of various electrical parameters, vector analysis, and waveform display. It utilizes non-invasive clamp-on current transformers, making it suitable for power quality testing and data logging across a wide range of grid scenarios.

Power Quality Analyzers A high-precision testing instrument widely used in power system O&M and industrial electrical testing, it strictly adheres to domestic standards for power testing. It is primarily used to troubleshoot power quality anomalies arising during the operation of public power grids and industrial electrical equipment. Leveraging high-precision sampling and digital signal processing technologies, the device stably captures operational details, fully addresses core grid testing needs, and is suitable for various indoor and outdoor tasks, including routine inspections, equipment commissioning, and fault troubleshooting.

Power Quality Analyzers Features comprehensive electrical parameter detection capabilities, precisely measuring voltages in the 10V–660V range (extendable to 1200V with a precision voltage divider box). It measures key parameters such as current, active power, reactive power, phase angle, power factor, and frequency. The frequency measurement range covers 45Hz to 65Hz, with phase angle measurement accuracy reaching 0.01°. It supports harmonic analysis up to the 63rd order, accurately identifying issues such as excessive harmonics, frequency deviations, and voltage deviations. Equipped with three-channel voltage and current detection, it can display single-phase waveforms individually or show three-phase waveform data simultaneously, providing an intuitive view of grid operating status.

Power Quality Analyzers Employs a non-contact measurement method using clamp-on current transformers; there is no need to disconnect the current circuit during operation, significantly enhancing safety and convenience in the field. The instrument comes with interchangeable clamp options, including standard 5A/25A clamp-on transformers, and supports optional flexible coils (100A/500A, 400A/2000A, and 1000A/5000A) to accommodate various measurement ranges and testing scenarios. The device supports vector diagram display, enabling personnel to quickly verify the correctness of metering equipment wiring and assist in troubleshooting wiring faults.

Regarding dynamic monitoring, Power Quality Analyzers accurately calculates short-term and long-term flicker values and monitors in real-time the impact of load fluctuations from electrical equipment on the power grid. It periodically records and stores trend data for parameters such as voltage, current, power, and phase, while also tracking active and reactive energy consumption at test points. All test interfaces feature a screen-lock function, facilitating accurate readings and data retention, thereby providing reliable data to support grid operation and maintenance optimization as well as power quality remediation.
