Laser ceilometer

1.Laser ceilometer product overview

Laser ceilometer is a simple, single-wavelength backscattered light lidar with a measuring range of up to 12 km that accurately detects multiple clouds, cirrus and aerosols.Laser ceilometer is a backscattering laser radar that uses the Mie scattering principle. The observation range can reach 12 kilometers, and it can effectively measure aerosols, cloud height, cloud thickness, cloud amount and vertical visibility. It can be applied to complex aerosol research or integrated into large-scale observation networks. It is a representative solution of the highest technical level for the diverse needs of atmospheric research.

2. Laser ceilometer function application

Aerosol vertical profile, cloud base height (5 layers), cloud thickness, vertical visibility, boundary layer height

The extended type has better performance for mixed layer measurement and aerosol research.

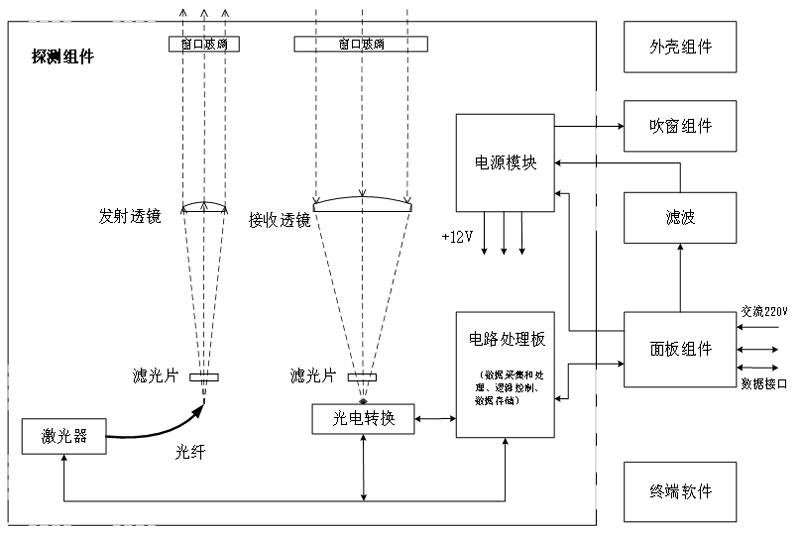

3. Working principle of Laser ceilometer

Based on the Mie scattering principle, by measuring the backscattered signal profile of the atmosphere to the emitted infrared light beam, it is determined whether there are clouds in the direction of the light path, and the cloud base height, cloud penetration thickness, aerosol extinction coefficient, sky atmospheric boundary layer height, and vertical visibility output when the sky is blurred are calculated. By establishing a time series of cloud base height, the cloud cover can be statistically estimated.

The equipment adopts advanced infrared laser remote sensing technology, with accurate cloud base height measurement, rich data products, stable and reliable operation, and simple use and maintenance.

4. Laser ceilometer product features

1. Adopting Mie scattering laser technology, the signal transmission power is strong and stable, and the measurement distance is long.

2. The equipment has penetrating measurement capabilities and can measure multiple layers of cloud and aerosol data simultaneously.

3. Use highly sensitive optical components to obtain high-precision measurement results: The optical design enables the application of narrow-band filters, effectively suppresses optical effects, and can accurately measure clouds and aerosols both during the day and at night.

4. The dual-lens design allows for self-checking between lenses, maximally eliminating the impact of lens contamination. It is not easily affected by diffuse reflection of particles in the atmosphere, and has a high sampling accuracy of 5m.

5. Reliable operation around the clock, equipped with a sealed metal shell and automatic window heating system, not affected by fog, rain or freezing.

6. Friendly operation interface and ease of use, simple maintenance, no consumable parts.

5. Laser ceilometer technical parameters

Measurement parameters			Electrical parameters
Measuring range	15～12000m		power supply	AC100~250V or DC9~36V
Measurement accuracy	＜150m±20m 150m～300m±10% ＞300m±20%		Power consumption	When not heating: ≤15W When heating: ≤100W
Solid target measurement Accuracy	±10m		size
			Housing (L x W x H)	320mm×200mm×380mm
Measuring cycle	15s～300s (adjustable)
			Packaging (L x W x H)	520mm×360mm×430mm
Measurement Type	◆Aerosol profile ◆Cloud base height ◆Cloud thickness ◆Vertical visibility ◆Number of clouds ◆Low, medium, high and total cloud cover ◆Integrated cloud amount ◆Can measure multi-layer clouds and cirrus clouds
			weight
			Complete Machine	≤12kg
			Detection part	≤6kg
			Work Environment
			Ambient temperature	-45℃～50℃
Interface and software
			Relative humidity	5%～100%RH
Standard interface	RS232
			Atmospheric pressure	450～1060hPa
Optional interfaces	RS485

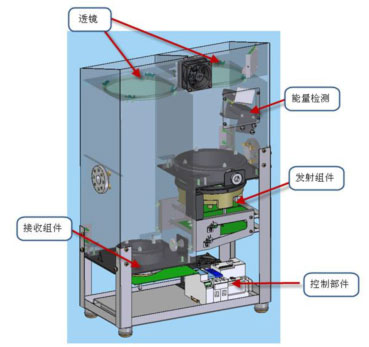

			Model Diagram
Data Communication	Serial port, optical fiber, Beidou, wireless
Optional Software	Visualization software
Data Format
MODBUS protocol, ASCII protocol format, China Meteorological Administration data dictionary data format protocol.
Laser ceilometer data format: output interval, date, time, sky conditions, number of cloud layers, cloud base height, integrated cloud amount, vertical visibility, system status, checksum
User data format: User defined
