Air quality sensor

1. Air quality sensor product introduction

Air quality sensor Used to detect M2.5, PM10, carbon monoxide, sulfur dioxide, nitrogen dioxide, ozone six air quality indicators.

Shandong Fengtu Internet of Things Technology Co., Ltd., as a company specializing in the research and development and production of meteorological sensors, has been committed to the promotion and application of meteorological sensors and meteorological environment solutions.With a complete production chain, a strong technical team and a comprehensive marketing team, the sensors we develop and produce have been widely used in smart agriculture, meteorological monitoring, urban environmental monitoring, wind power generation, marine vessels, aviation airports, bridges and tunnels, etc., with customers all over the country, and have achieved good social and economic benefits.

2.Features of Air quality sensor

1.Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system

2.High integration, no moving parts, zero wear

3.Maintenance-free, no need for on-site calibration

4.ASA engineering plastics are used for outdoor applications without discoloration all year round.

5.The product design output signal is standardly equipped with RS485 communication interface (MODBUS protocol); 232, USB, Ethernet interface are optional, supporting real-time data reading☆

6.Optional wireless transmission module, minimum transmission interval 1 minute

3.Air quality sensor technical parameters

1.PM2.5: 0-1000ug/m3 (±10%)

2.PM10: 0-1000ug/m3 (±10%)

3.Carbon monoxide: 0-10ppm (±5%FS)

4.Sulfur dioxide: 0-5PPM (±5%FS)

5.Nitrogen dioxide: 0-5PPM (±5%FS)

6.Ozone: 0-5PPM (±5%FS)

7.Power: 0.6W

8.The manufacturer has a computer software registration certificate☆

9.The manufacturer is a 3A credit enterprise☆

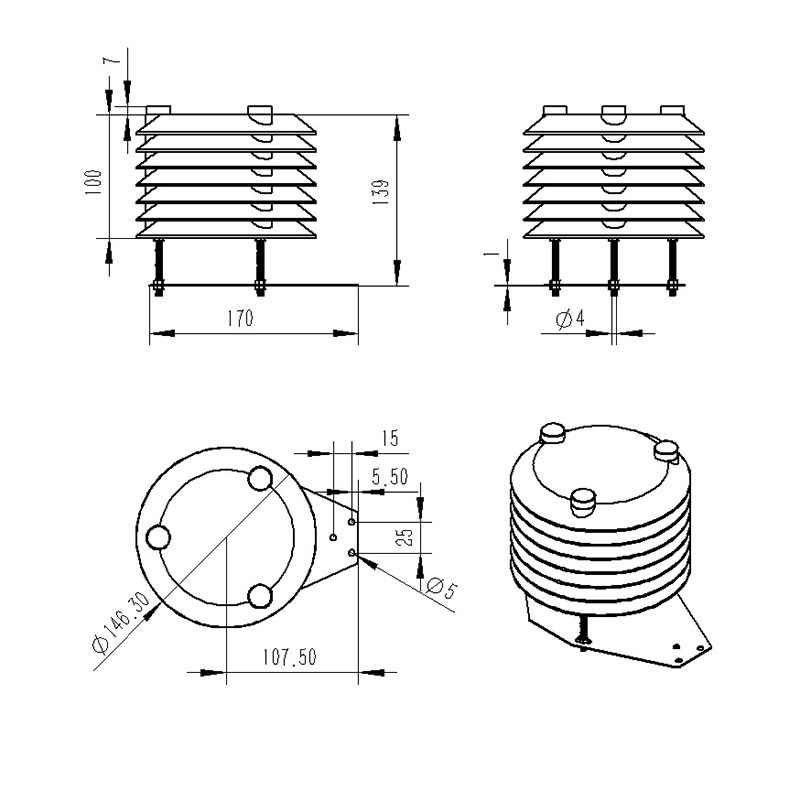

4.Air quality sensor product size diagram

5.Air quality sensor product structure diagram
