Ozone sensor

Ozone sensor

Model：FT-QT4

Brand：fengtu

Ozone sensors can monitor ozone concentrations in industrial environments in real time, ensuring operator safety and preventing equipment damage.

mail

Get a Free Quote

Related products

1. Ozone sensor technical parameters

Ozone sensors can monitor ozone concentrations in industrial environments in real time, ensuring operator safety and preventing equipment damage.

model	Measurement parameters	Measuring range	Accuracy	Resolution	unit	Operating temperature	Operating humidity
QT1	Carbon monoxide	0-1000PPM	±2PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT1S	Carbon monoxide	0-20PPM	≤±5%	0.01PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT2	Sulfur dioxide	0-20PPM	±1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT2S	Sulfur dioxide	0-1PPM	≤±5%	0.001ppm	PPM	-20℃-+50℃	10-95%RH non-condensing
QT3	Nitrogen dioxide	0-20PPM	±1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT3S	Nitrogen dioxide	0-1PPM	≤±5%	0.001ppm	PPM	-20℃-+50℃	10-95%RH non-condensing
QT4	ozone	0-20PPM	±1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT4S	ozone	0-1PPM	≤±5%	0.001ppm	PPM	-20℃-+50℃	10-95%RH non-condensing
QT5	Oxygen content	0~30%VOL	±3%FS	0.1%VOL	VOL	-20℃-+50℃	5-95%RH non-condensing
QT6	Negative oxygen ions	0～100,000/cm³	±10%	10pcs/cm³	Pieces/cm³	+10℃-+70℃	10-70%RH without condensation
QT7	Hydrogen sulfide	0-100PPM	±2PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT8	Methane	0-100%LEL	≤±3%	1%LEL	LEL	-20℃-+50℃	10-95%RH non-condensing
QT9	TVOC	0-100PPM	55±15 nA/ppm	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT10	Ammonia	0-100PPM	±4PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT11	Nitric Oxide	0-250PPM	-2~10PPM	1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing
QT12	formaldehyde	0-10PPM	<1PPM	0.1PPM	PPM	-20℃-+50℃	10-95%RH non-condensing

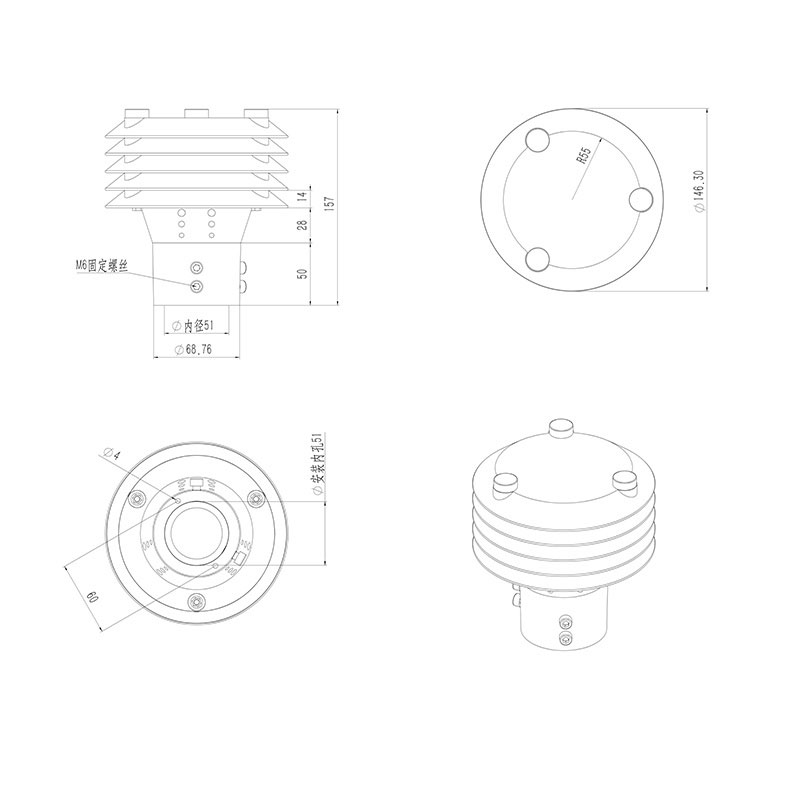

2. Ozone sensor product size diagram

Ozone sensor product size diagram
