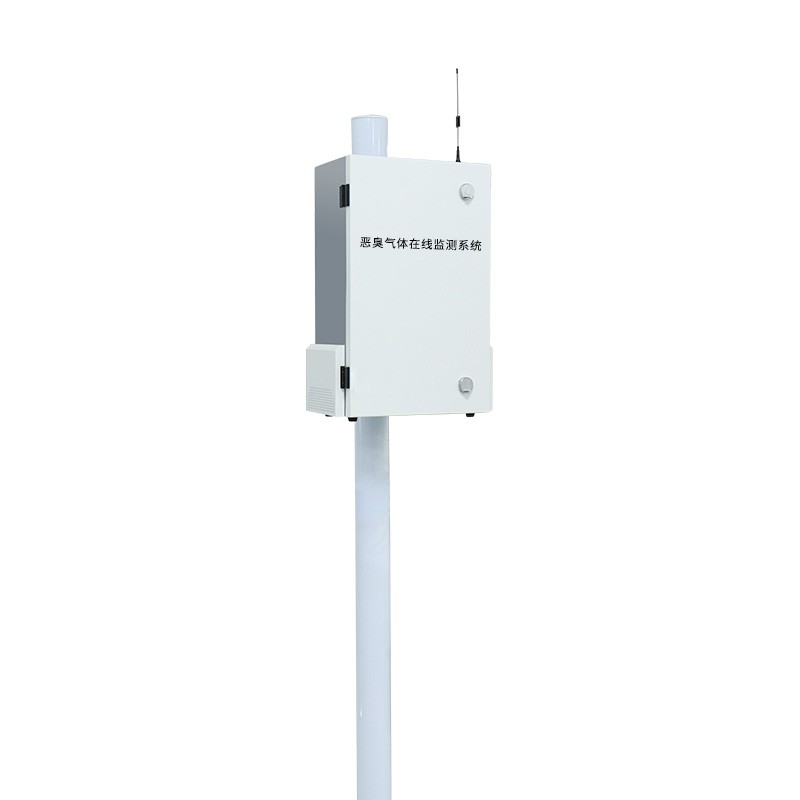

Odor gas detector Enabling Precision, Round-the-Clock Monitoring of Fugitive Emissions in Industrial Facilities

Odor gas detector Leveraging multi-sensor array technology and adhering to the GB14554 standard, this system provides 24/7 monitoring of fugitive odorous pollutants. It supports on-site calibration and remote O&M, making it suitable for key environmental monitoring scenarios such as wastewater treatment plants, chemical industrial parks, and waste treatment facilities.

Odor gas detector This professional monitoring equipment is designed specifically for fugitive air emissions in industrial areas. Widely used in facilities prone to odor pollution—such as waste treatment sites, wastewater plants, and chemical parks—it meets the dual needs of intermittent spot checks and continuous 24-hour monitoring. It accurately captures concentration fluctuations of odorous pollutants in the area, providing reliable data to support environmental management and control. The device strictly complies with the GB14554 emission standards for odorous pollutants, offering comprehensive monitoring of over ten conventional odor indicators—including odor concentration (OU), ammonia, styrene, hydrogen sulfide, VOCs, and trimethylamine—thereby fully meeting regulatory compliance requirements for industrial odor monitoring.

Odor gas detector The core detection module utilizes a hybrid multi-sensor array architecture, integrating high-precision components such as metal-oxide sensors, PID (photoionization detectors), electrochemical sensors, and ETO sensors. By combining "electronic nose" sensor arrays with mainstream gas chromatography technology and proprietary algorithms that simulate human olfactory analysis logic, the system significantly enhances detection accuracy in complex operating conditions. The sensors feature an independent, hot-swappable modular design; individual sensors can be calibrated, removed, and replaced separately. On-site calibration and commissioning eliminate the need for factory-based laboratory calibration, effectively reducing O&M costs and downtime while ensuring monitoring continuity.

Odor gas detector Equipped with a 7-inch true-color LCD touchscreen, the device displays real-time monitoring data and operational status. It generates historical concentration trend curves and provides a visual representation of data fluctuations and gas component ratios, enabling staff to rapidly assess and analyze pollution events. The system includes built-in intelligent O&M software with proactive sensor maintenance alerts, notifying users of maintenance needs in advance. The device features a built-in high-capacity database capable of storing over one million monitoring records. It supports local data copying and firmware upgrades via USB drive, while also enabling remote one-click upgrades and parameter adjustments. This design balances local operation with remote management requirements, making it well-suited for modern, intelligent environmental monitoring systems.
