Power Quality Measurement For Rapid On-Site Troubleshooting of Electrical Circuits

Power Quality Measurement is designed for power quality analysis in power plants, transmission lines, distribution facilities, industrial power systems, and railway traction networks; it enables the rapid identification and troubleshooting of power quality issues such as harmonic content and three-phase imbalance.

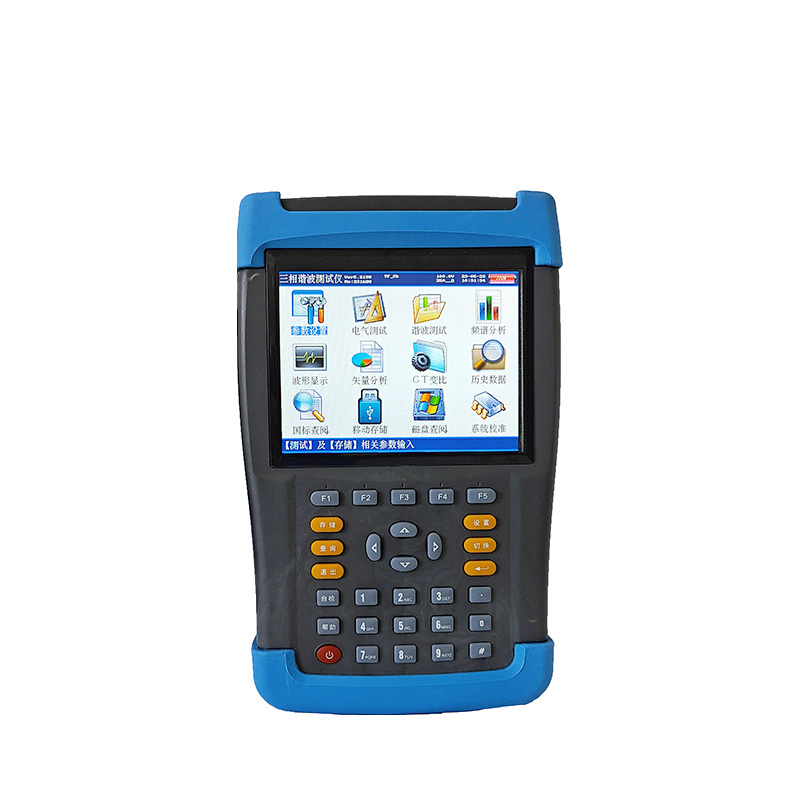

Power Quality Measurement is a high-precision testing instrument specifically engineered to detect power quality anomalies within power grids—including waveform distortion, harmonic content, voltage fluctuations and flicker, and three-phase imbalance. Additionally, it features capabilities for measuring electrical parameters and performing vector analysis. The instrument accurately measures a wide range of electrical parameters—such as voltage, current, active power, reactive power, phase angle, power factor, and frequency—helping users minimize downtime, quickly resolve power quality issues, and identify sources of energy waste.

Power Quality Measurement is suitable for a diverse array of applications, including power quality analysis in power plants, transmission lines, distribution facilities, general utility networks, industrial power systems, and railway traction networks. Taking electrified railways as an example: their traction loads constitute highly fluctuating, high-power, single-phase rectified loads. These loads can trigger a series of power quality issues—such as negative-sequence components, harmonics, voltage fluctuations, and flicker—thereby impacting the safe and reliable operation of the power grid. During field testing, technicians frequently utilize portable power quality analyzers to conduct background harmonic measurements—in strict accordance with relevant national standards—by collecting and analyzing data directly from substation busbars.

When deployed in the field, proper wiring protocol is paramount; voltage and current sensors must be connected strictly according to the correct phase sequence to prevent reverse connections, which can lead to data distortion or even equipment damage. Power Quality Measurement supports the simultaneous use of voltage transformers and clamp-on current transformers, simplifying field connections and allowing for direct integration into the circuit without the need to interrupt the current loop. Furthermore, the device is capable of capturing and detecting instantaneous changes in grid voltage and current parameters—including voltage and current fluctuations, surges, sags, momentary interruptions, transient overvoltages, inrush currents, and instantaneous waveform distortions. Its portable, handheld design enables technicians to perform inspections without interrupting power supply, allowing for real-time monitoring of grid electrical parameters and the transmission of data via a communication interface to a computer for analysis. Certain models support the detection of positive-sequence voltage and current harmonics, thereby meeting national standard requirements. This instrument has become an essential tool within the power system, industrial user, and rail transit sectors for assessing power quality and informing mitigation strategies.
