Weather monitor Enables Low-Power, High-Precision Meteorological Monitoring in the Field

Weather monitor is a highly integrated, low-power, quickly installable, and easy-to-use high-precision meteorological observation device for field monitoring. The system integrates multiple sensors for temperature and humidity, wind speed and direction, rainfall, air pressure, and light intensity, using advanced sensor technology to monitor and record changes in meteorological elements in real time. It has wide applications in meteorology, hydrology, agriculture, industry, environmental protection, tourism, and scientific research.

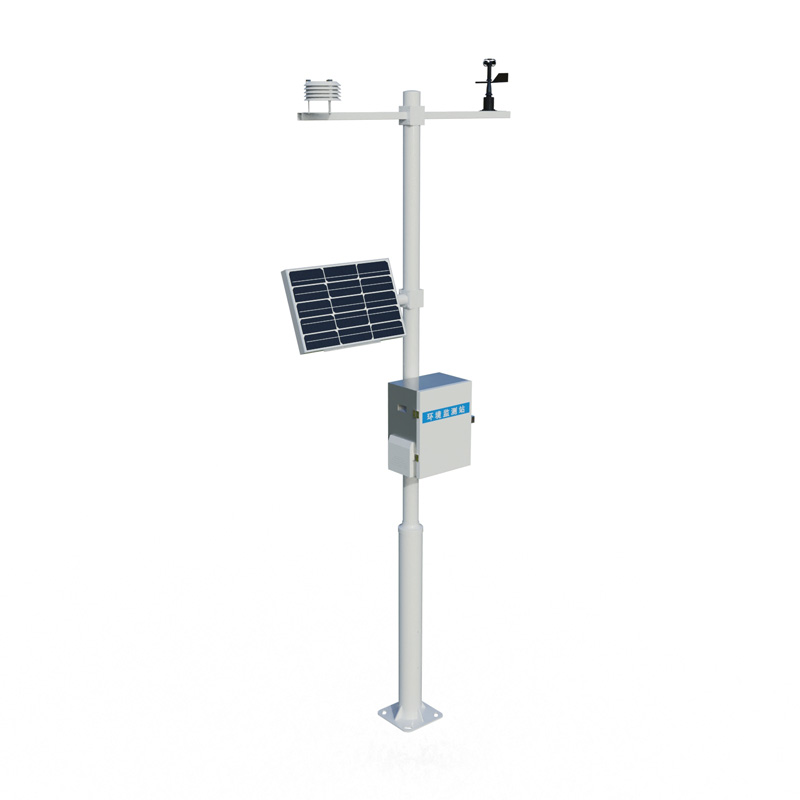

Weather monitor is a highly integrated, low-power, quickly installable, and easy-to-use high-precision meteorological observation device for field monitoring, consisting of five parts: meteorological sensors, a data acquisition unit, a solar power supply system, a pole support, and a cloud platform. The system integrates multiple sensors for temperature and humidity, wind speed and direction, rainfall, air pressure, and light intensity, using advanced sensor technology to achieve real-time monitoring and recording of meteorological elements. Unlike traditional large weather stations that require fixed sites and complex construction, the Weather monitor weighs only a few kilograms and supports multiple installation methods, including ground mounting, rooftop installation, and portable mobility, allowing for installation and commissioning within 30 minutes. The equipment uses a top-covered concealed ultrasonic probe to measure wind speed and direction, avoiding interference from rain and snow accumulation. The sensor housing is made of imported ASA material, achieving an IP65 protection rating or higher, effectively resisting harsh environments such as salt spray.

For data transmission, the Weather monitor comes standard with GPRS networking and supports extended Bluetooth, wired transmission, and 4G communication. Data is uploaded to a cloud platform in real time, allowing users to view real-time data, historical curves, and trend analysis via a mobile app or computer webpage. The system is equipped with an intelligent analysis platform that automatically generates meteorological trend charts and anomaly warnings, supporting remote access from multiple terminals. Users can customize alarm thresholds for meteorological parameters. When data exceeds the set range, the system pushes immediate alarm information via SMS or app, helping users detect anomalies and take countermeasures as soon as possible. With a static power consumption of less than 50uA, the system employs a dual power supply mode of solar energy and lithium battery. Solar charging provides 24 hours of continuous operation on sunny days, while the lithium battery continues to supply power on cloudy days, enabling long-term unattended operation.

The system features multi-channel input and high precision requirements, capable of monitoring temperature, humidity, wind speed, wind direction, air pressure, precipitation, solar radiation, and radiation balance, with a focus on specific observations such as temperature and humidity gradients and wind speed profiles. This system is widely used in meteorology, agriculture, forestry, environmental protection, marine science, airports, ports, scientific research, and educational institutions. In smart agriculture, the system monitors field microclimates, providing a scientific basis for precision irrigation, fertilization, and pest and disease control; frost, strong wind, and rainstorm warnings minimize disaster losses. In engineering construction, the system monitors wind speed, wind direction, PM2.5, and other parameters at construction sites in real time, with automatic strong wind alarms ensuring the safety of tower cranes and high-altitude operations. In industrial parks, the system monitors wind direction and pollutant diffusion trends, providing data support for environmental management. Scenic spots and outdoor campsites can deploy this equipment to monitor rainfall and UV intensity in real time, enabling them to evacuate tourists promptly during dangerous weather and improve safety management.
