scenic weather station

1.Scenic Weather Station Product Introduction

scenic weather station is arranged in the scenic spot and is used to monitor meteorological elements such as air temperature, humidity, PM2.5 and PM10.The scenic weather station can monitor the concentration of negative oxygen ions in the air around the clock, and can expand monitoring items according to user needs, such as: air temperature, air humidity, PM2.5, PM10 and other meteorological elements; modular structure design, sensors can be replaced individually, equipped with professional installation brackets, data can be read directly on-site through the LED screen, and data can be viewed in real time on the remote cloud platform/WEB/WeChat public account, which is convenient for later operation and maintenance.

2.Application scope of scenic weather station

Tourist attractions, ecological estates, wetland parks, waterfall parks, forest parks, nature reserves, sales offices, schools

3.Scenic Weather Station Technical Parameters

1.Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate from Beijing Meteorological Bureau)

2.Air humidity: Measurement principle: capacitive, 0-100%RH (±0.3%RH), resolution: 0.1%RH; (Calibration certificate from Beijing Meteorological Bureau)

3.PM2.5: Measurement principle: light scattering, 0-1000ug/m3 (±10%), resolution: 1ug/m3

4.PM10: Measurement principle: light scattering, 0-1000ug/m3 (±10%), resolution: 1ug/m3

5.Negative oxygen ions: Measurement principle: cylindrical electrode inhalation type, 0-100,000/cm³ (±10%), resolution: 1/cm³

6.Data storage: can store one year's original monitoring data;

7.Data transmission: GPRS/4G/optical fiber

8.Power consumption: 800w

9.Power supply mode: 220V mains electricity, solar energy (optional)

10.Working environment: temperature -40℃-60℃, humidity 0%-100%

11.Screen: 2m*1m, composed of 36 P10 single red unit panels, unit panel size 32cm*16cm

12.Pole: Carbon steel double column, each column is made of two 1.5-meter pole flanges connected together, can withstand a strong typhoon of level 15

13.The manufacturing enterprise has ISO quality management system, environmental management system and occupational health management system certification

14.The manufacturer has a computer software registration certificate

15.The manufacturer is a 3A credit enterprise

4.Features of scenic weather station products

1.High integration and flexible solutions: The system can integrate negative oxygen ions, air temperature, air humidity, PM2.5, PM10

2.Stable system: We have cooperated with thousands of parks and scenic spots, with stable backend operation, maintenance-free and low failure rate

3.Multiple transmission: The transmission method can be customized according to the on-site network conditions, 2G/4G/optical fiber

4.Support expansion: support sensor expansion, 485 interface, modbus protocol sensors can be used directly

5.Various display schemes: point-to-point, point-to-multiple, and multi-to-point LED screen data display schemes can be selected according to on-site needs

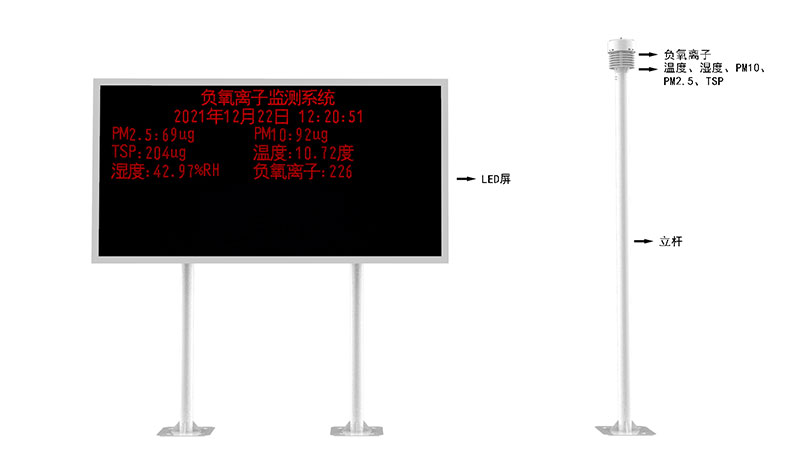

5.Scenic Weather Station Product Structure

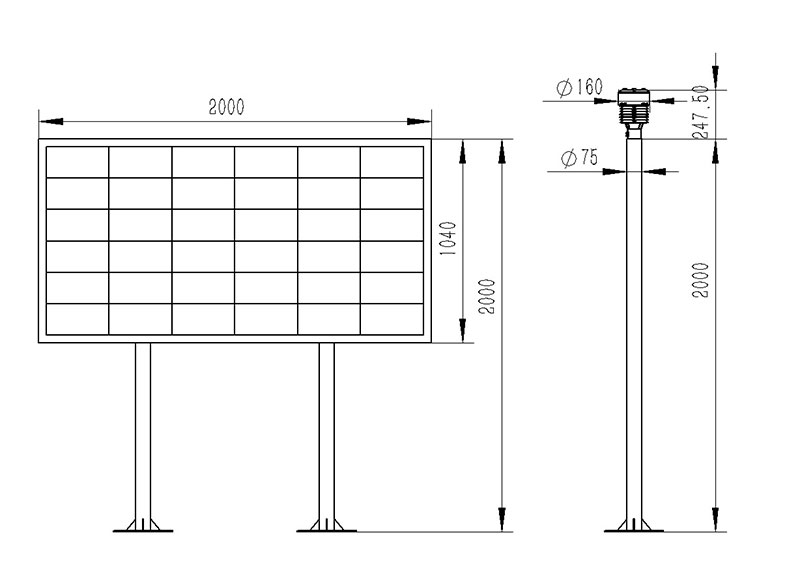

6.Scenic Weather Station Product Dimensions

7.Introduction to scenic weather station cloud platform

1.CS architecture software platform, supports direct observation through mobile phones and PC browsers, without the need to install additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
