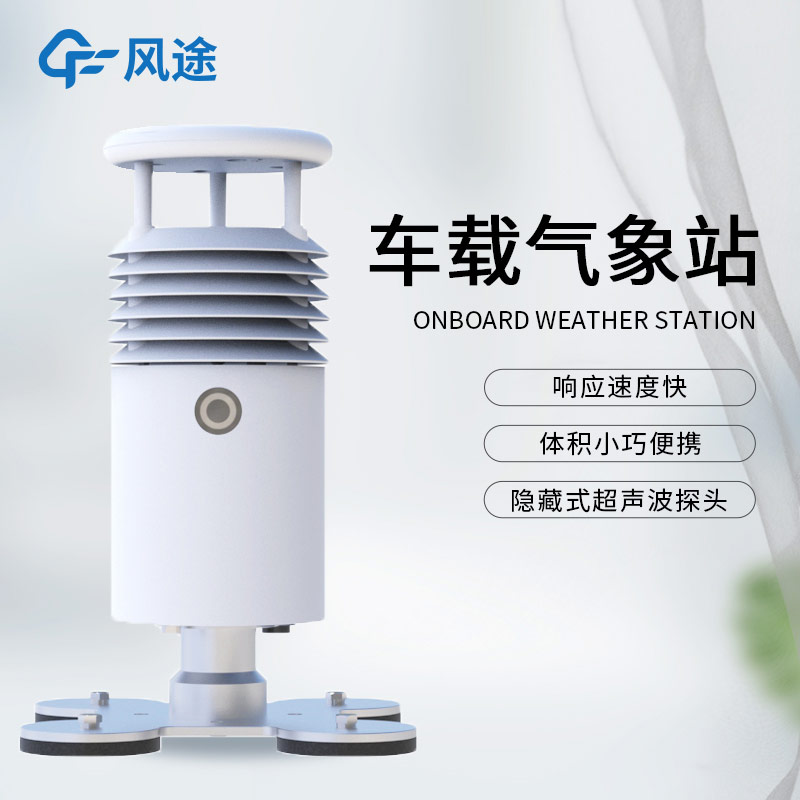

FT-CZ5S Vehicle Weather Station: Mobile 5-Element Visual Meteorological Monitoring System

In modern meteorological monitoring, emergency response, scientific research, and transportation management fields, traditional fixed weather stations struggle to meet the demands for mobile observation and rapid deployment. Particularly in disaster areas, remote scientific research routes, or meteorological support for special events, flexible and accurate mobile meteorological data is often crucial. Thus, the Vehicle Weather Station was developed, breaking through the spatial limitations of fixed stations to achieve high-precision "on-the-go" meteorological observation.

FT-CZ5S is a highly integrated, low-power mobile meteorological observation device launched by weather station manufacturer [Fengtu Technology]. It adopts a five-element integrated sensor capable of simultaneously real-time monitoring of core meteorological elements including wind speed, wind direction, air temperature, humidity, and atmospheric pressure. With its portable design and quick installation features, it is widely used in meteorology, agriculture, forestry, environmental protection, oceanography, airports, ports, and scientific research expeditions.

[Product Highlights]

1. Built-in Wide-angle Cameras for Visual Monitoring

The device is equipped with three 120° wide-angle cameras with 640*480 resolution. Users can synchronously view real-time video footage and monitoring data on PC terminals through supporting host computer software, achieving integration of meteorological information and on-site visuals to provide more intuitive decision-making basis.

2. Ultrasonic Wind Measurement for Precision and Reliability

Utilizing ultrasonic technology for wind speed and direction measurement, effectively avoiding interference from snow/rain accumulation or wind blockage that affects traditional mechanical sensors.

Wind speed: Measurement range 0～60m/s, accuracy up to ±0.1m/s

Wind direction: Measurement range 0～360°, accuracy ±2°

3. Long-lasting Lithium Battery for Continuous Operation

Equipped with a built-in 12000mAh high-capacity lithium battery providing over 24 hours of continuous operation, meeting the needs of long-term field monitoring.

4. Portable Design with Rapid Deployment

With total weight not exceeding 5kg and equipped with a shockproof carrying case for easy transportation. The bottom features high-strength rubber-coated magnets enabling damage-free adsorption to vehicle roofs. Single-person deployment can be completed within 2 minutes, significantly improving work efficiency.

5. Intelligent Positioning and Data Transmission

Integrated Beidou and GPS dual-mode positioning system with positioning accuracy up to 0.1 meters, and built-in electronic compass for automatic direction calibration. Standard 485-to-USB cable allows direct data reading via laptop or tablet, supporting multiple communication methods including JSON string and Modbus485 protocols.
