electronic weather station

Model：FT-SQ15

Brand：fengtu

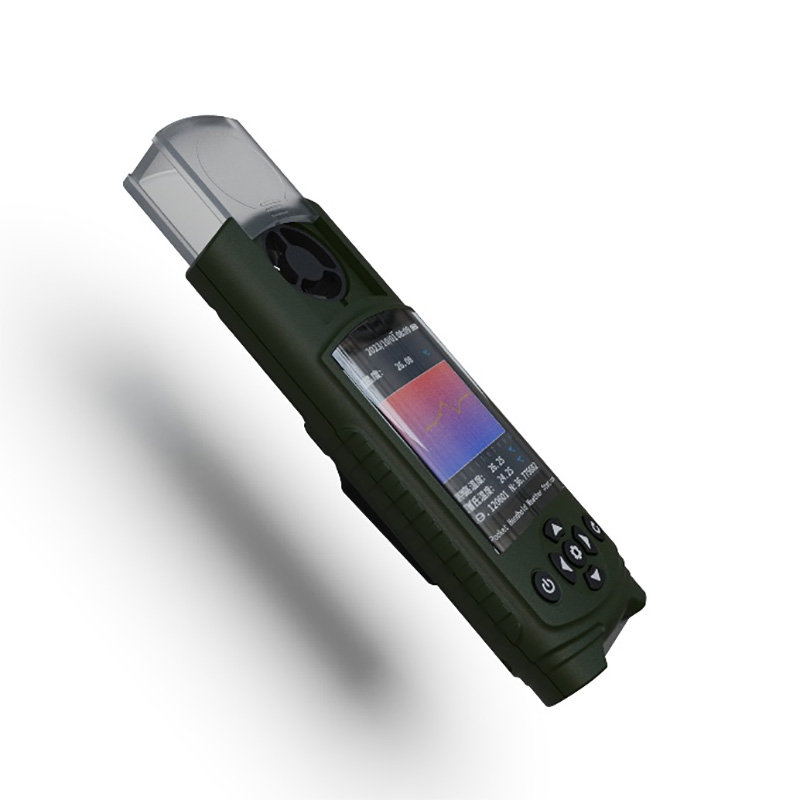

electronic weather station is a portable meteorological observation instrument that is convenient to carry, easy to operate, and integrates a number of meteorological elements.

Get a Free Quote

Related products

1.Introduction of electronic weather station

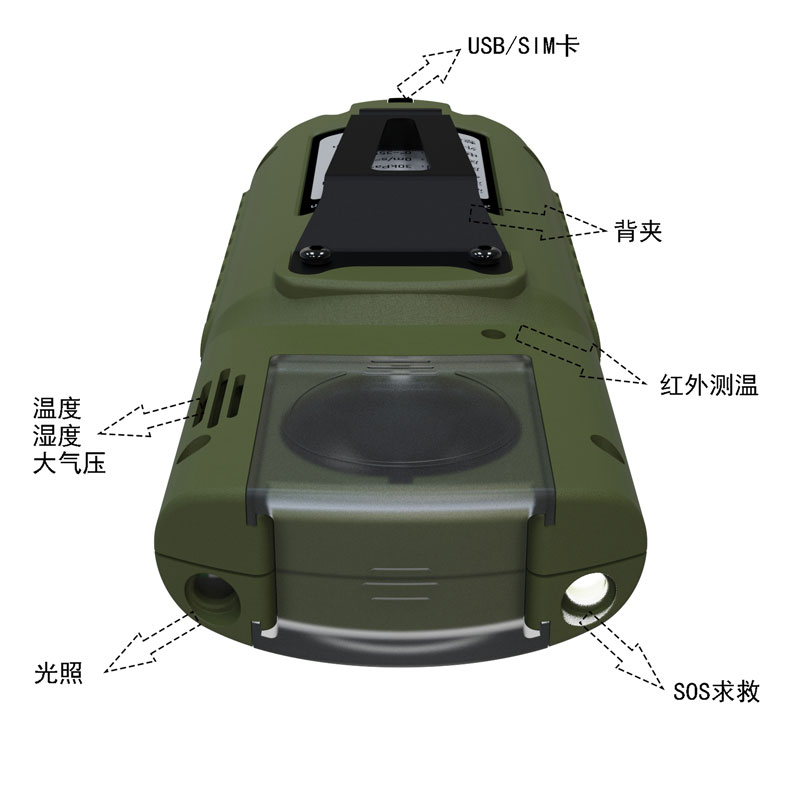

electronic weather station is a portable meteorological observation instrument that is convenient to carry, easy to operate, and integrates a number of meteorological elements.This product provides real-time measurement of parameters such as temperature, humidity, atmospheric pressure, wind speed, wind direction, light, total radiation, ultraviolet radiation, runway temperature, etc.

It also has functions such as outdoor SOS rescue, electronic compass, runway temperature, weather forecast for the next 3 hours, human comfort, radio silence, GNSS positioning, etc.

At the same time, wireless transmission (4GCat1) and WiFi upload to cloud platform or local area network server are realized, and USB can read internal storage data.

This instrument can be widely used in meteorology, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.

2. Technical parameters of electronic weather station

Meteorological parameters	Measuring features	Measuring range	Accuracy	Resolution	unit
	temperature	-45-130	±0.2	0.01	℃
	humidity	0-100	±2.0	0.01	%
	Atmospheric pressure	30-110	±0.01	0.01	KPa
	Wind speed	0-40	±1	0.01	m/s
	wind direction	0-359	±1	1	°
	illumination	0-157286	＜±3%	1	Lux
	Total radiation	0-1242	＜±3%	1	W/㎡
	UV rays	0-262144	＜±3%	1	mW/㎡
	Runway temperature	-40- 85	±0.5	0.01	℃
	Electronic compass	0-359	1	1	Spend
GNSS positioning	Positioning accuracy 2m
SOS	International Morse Code distress signal
Battery	3800mAh
Communications	4G Cat1, Wifi, USB
Radio Silence	Disable device 4G CAT1 communication and enter airplane mode
Human comfort	Calculate the current human comfort level based on the SET model
Weather forecast for the next 3 hours	Deduces three-hour weather conditions based on temperature, humidity, atmospheric pressure, light, ultraviolet rays, wind speed and other information
storage	6MB storage (90,000 records)

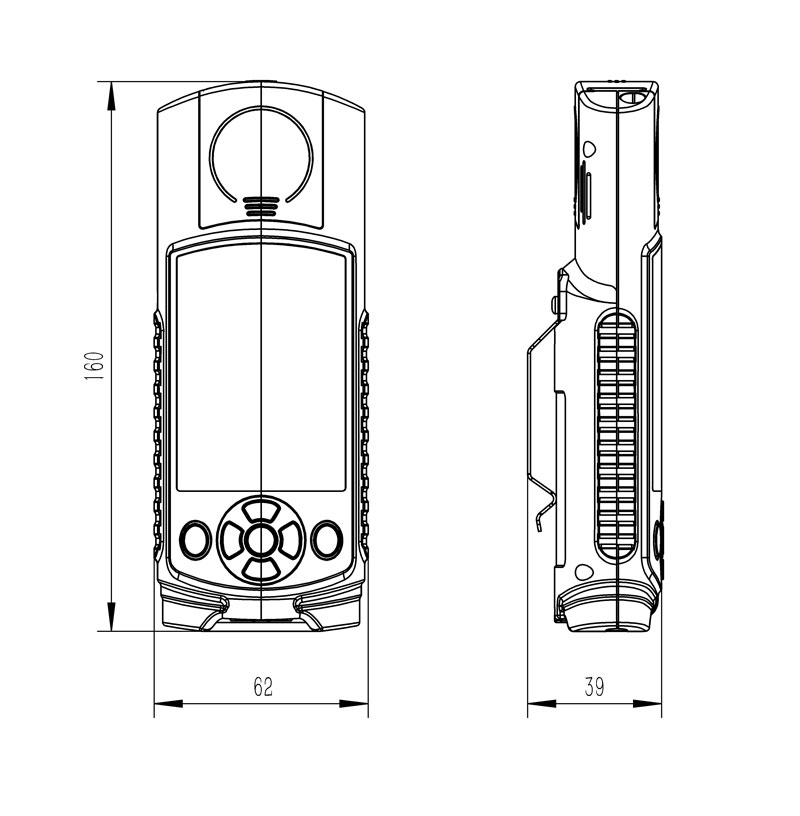

Host size	1606240 mm
working environment	-20℃～80℃; 5%RH～95%RH
