ambient weather station handheld
Model：FT-SQ17
Brand：fengtu
Get a Free QuoteRelated products
1.Ambient Weather Station Handheld Product Introduction
ambient weather station handheld is a multi-functional handheld micro-weather station that enables real-time monitoring of multiple elements.This product provides real-time measurement of parameters such as temperature, humidity, atmospheric pressure, wind speed, wind direction, light, total radiation, ultraviolet radiation, runway temperature, etc.
It also has functions such as outdoor SOS rescue, electronic compass, runway temperature, weather forecast for the next 3 hours, human comfort, radio silence, GNSS positioning, etc.
At the same time, wireless transmission (4GCat1) and WiFi upload to cloud platform or local area network server are realized, and USB can read internal storage data.
This instrument can be widely used in meteorology, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.
2. Ambient Weather Station Handheld Technical Parameters
| Meteorological parameters | Measuring features | Measuring range | Accuracy | Resolution | unit |
| temperature | -45-130 | ±0.2 | 0.01 | ℃ | |
| humidity | 0-100 | ±2.0 | 0.01 | % | |
| Atmospheric pressure | 30-110 | ±0.01 | 0.01 | KPa | |
| Wind speed | 0-40 | ±1 | 0.01 | m/s | |
| wind direction | 0-359 | ±1 | 1 | ° | |
| illumination | 0-157286 | ＜±3% | 1 | Lux | |
| Total radiation | 0-1242 | ＜±3% | 1 | W/㎡ | |
| UV rays | 0-262144 | ＜±3% | 1 | mW/㎡ | |
| Runway temperature | -40- 85 | ±0.5 | 0.01 | ℃ | |
| Electronic compass | 0-359 | 1 | 1 | Spend | |
| GNSS positioning | Positioning accuracy 2m | ||||
| SOS | International Morse Code distress signal | ||||
| Battery | 3800mAh | ||||
| Communications | 4G Cat1, Wifi, USB | ||||
| Radio Silence | Disable device 4G CAT1 communication and enter airplane mode | ||||
| Human comfort | Calculate the current human comfort level based on the SET model | ||||
| Weather forecast for the next 3 hours | Deduces three-hour weather conditions based on temperature, humidity, atmospheric pressure, light, ultraviolet rays, wind speed and other information | ||||
| storage | 6MB storage (90,000 records) | ||||
| Host size | 160*62*40 mm | ||||
| working environment | -20℃～80℃; 5%RH～95%RH | ||||

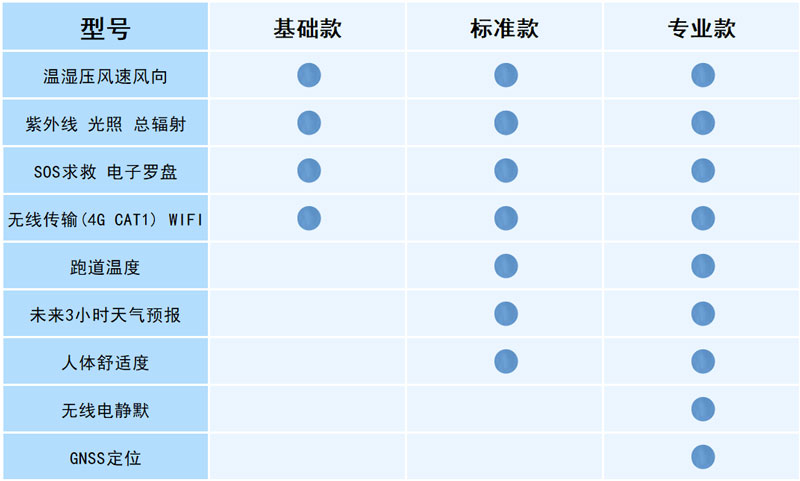

3. Ambient Weather Station Handheld Configuration Instructions

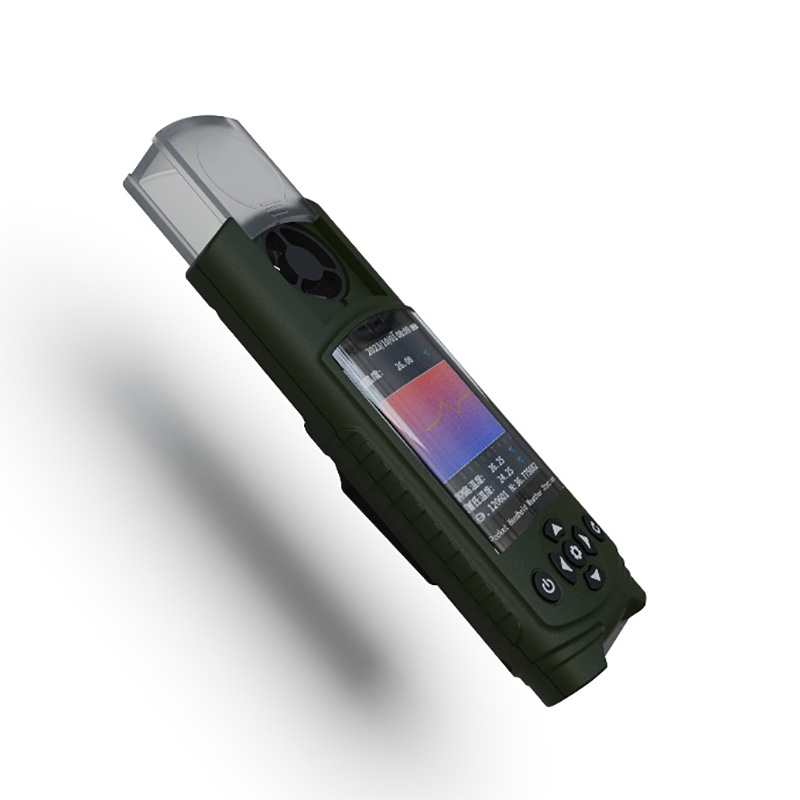

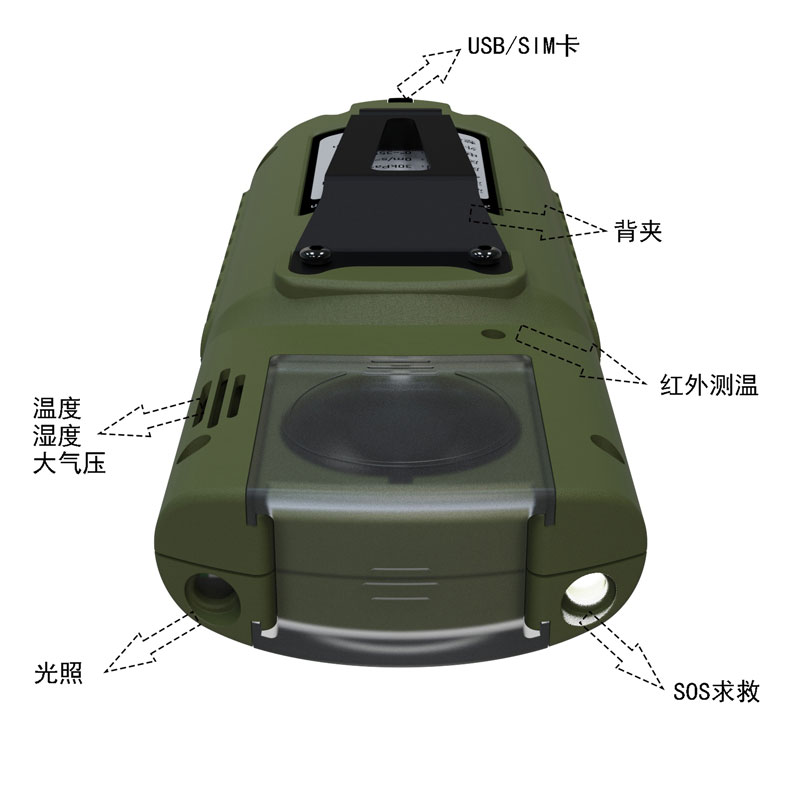

4. Ambient Weather Station Handheld Product Appearance

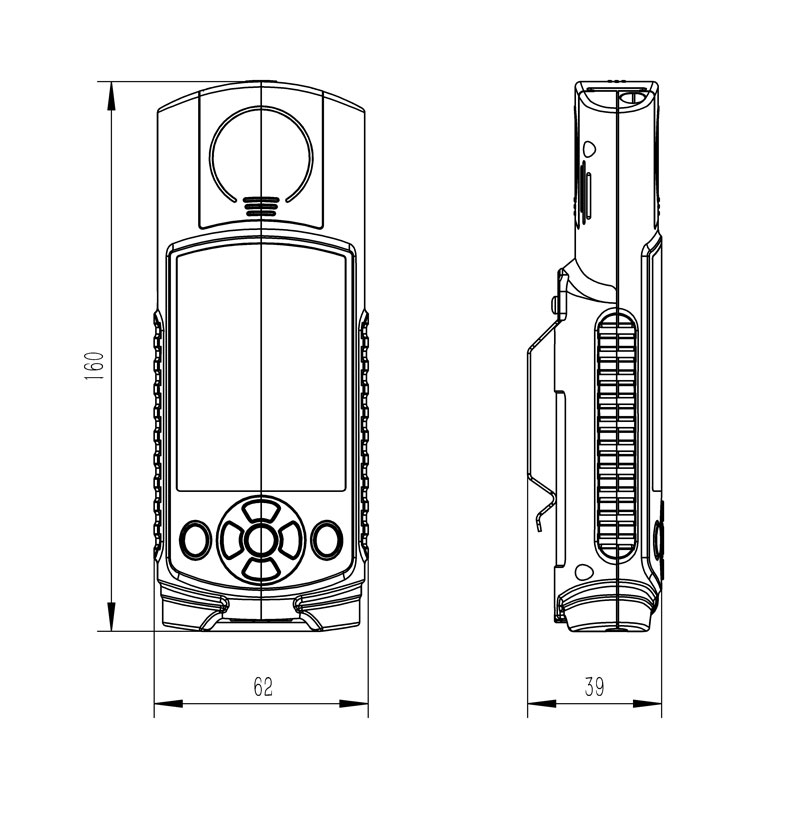

5. Ambient Weather Station Handheld Product Dimensions
6. Ambient Weather Station Handheld Shipping List
| name | quantity |
| Host | 1 |
| charger | 1 |
| Data cable | 1 |
| manual | 1 |
| Certificate | 1 |
| Warranty Card | 1 |
| Packing box | 1 |
