Wetland Miniature Weather Stations Can Monitor Negative Oxygen Ion Concentration Around the Clock

These stations can monitor the concentration of negative oxygen ions in the air around the clock and can also be expanded to include air temperature, humidity, PM2.5, PM10, and other meteorological elements. The modular design allows for individual sensor replacement. Data can be read on-site via an LED screen or viewed remotely via a cloud platform or WeChat official account in real time.

Wetland ecosystems demand continuous operation, simultaneous measurement of multiple elements, and remote data acquisition from meteorological monitoring equipment. The wetland miniature weather station is a specialized device designed for wetland ecological monitoring scenarios. It can monitor the concentration of negative oxygen ions in the air around the clock and can be flexibly expanded to include air temperature, humidity, PM2.5, PM10, and other meteorological elements according to user needs. The modular design allows for individual sensor replacement, reducing the difficulty and cost of later maintenance.

In terms of measurement performance, the air temperature sensor uses the diode junction voltage method, with a measurement range of -40 to 60℃, an accuracy of ±0.3℃, and a resolution of 0.01℃. The air humidity sensor uses a capacitive principle, with a measurement range of 0-100%RH, an accuracy of ±0.3%RH, and a resolution of 0.1%RH. PM2.5 and PM10 sensors both use light scattering principles, with a measurement range of 0-1000 μg/m³, an accuracy of ±10%, and a resolution of 1 μg/m³. The negative oxygen ion sensor uses a cylindrical electrode suction principle, with a measurement range of 0-100,000 ions/cm³, an accuracy of ±10%, and a resolution of 1 ion/cm³. These technical specifications meet the accuracy requirements for wetland environmental monitoring.

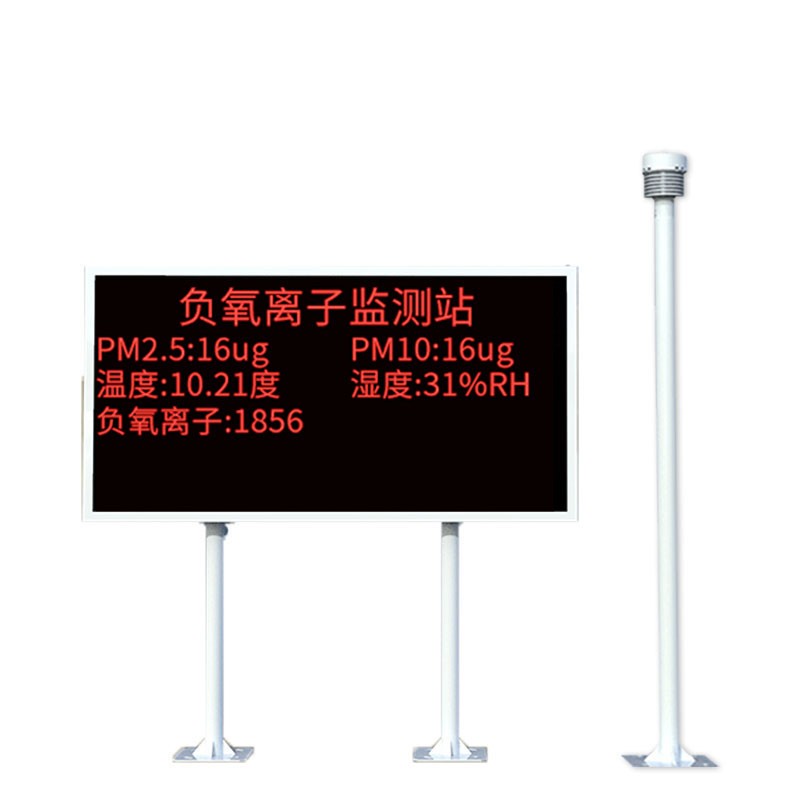

The wetland micro-weather station is equipped with a professional mounting bracket, allowing real-time data to be read directly on-site via an LED screen. The device also supports remote cloud platform, web page, and WeChat official account data viewing, enabling users to monitor wetland weather conditions without being physically present. The modular design allows for rapid on-site sensor replacement and maintenance, eliminating the need for complete factory repairs and effectively reducing equipment downtime.

The wetland micro-weather station is widely applicable to wetland nature reserves, wetland parks, lake ecological monitoring stations, and other similar scenarios. Wetland micro-weather stations can provide continuous and reliable meteorological data support for wetland ecological research, wetland protection and management, and environmental assessment, helping managers to understand the changing patterns of wetland microclimates.
