Wind speed and direction sensor
Model：FS485
Brand：fengtu
Get a Free QuoteRelated products
1.Wind speed and direction sensor technical indicators
Wind speed and direction sensor is a relatively advanced instrument for measuring wind speed and direction, which is a mechanical structure wind speed and direction sensor.
Power supply: DC12V
Working environment: -40~70℃, humidity ≤100% without condensation
Communication interface: RS485
Operating current: 55mA DC12V
Starting wind speed: 0.5m/s
Minimum data interval: 0.5S
Housing material: polymer engineering plastic
2.Wind speed and direction sensor parameters
| parameter | Measurement range | Resolution | Accuracy |
| Wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |
| wind direction | 0-360 degrees | 0.1 degree | ±1 degree |
| Average wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |

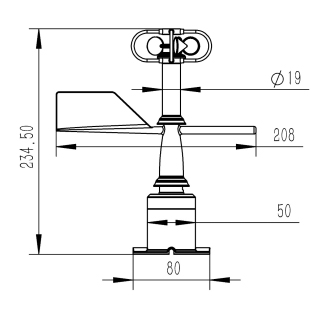

3.Wind speed and direction sensor appearance size

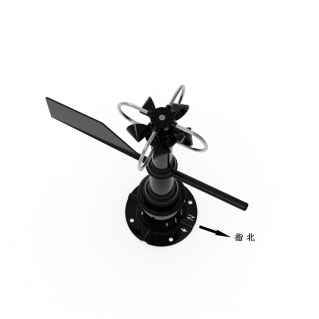

4.Wind speed and direction sensor installation requirements
When installing, the direction of the base arrow N must be directed to the north (as shown in the figure above)
