I-V Curve Tracer Applied to On-Site Testing of Photovoltaic Power Plants

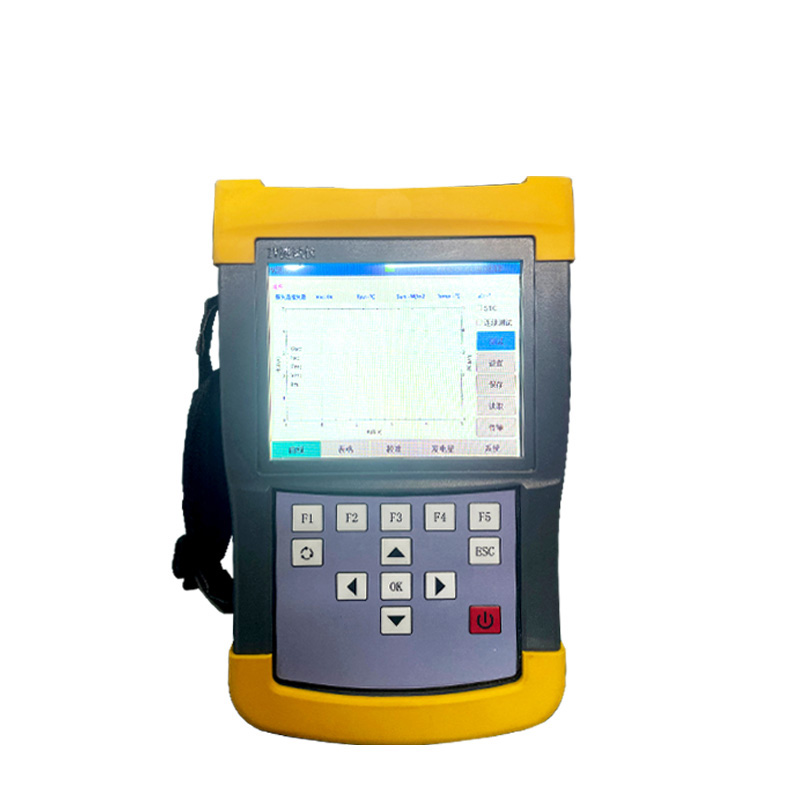

I-V Curve Tracer is a high-precision portable device specifically designed for on-site testing of photovoltaic modules. It can quickly measure key parameters such as open-circuit voltage, short-circuit current, and maximum power point, and supports various test modes including IV curve and P-V curve testing.

I-V Curve Tracer is a portable measuring device specifically used for testing photovoltaic power plants. Its main function is to test the current-voltage characteristics of photovoltaic modules on-site. Through measurement, it can obtain key parameters such as open-circuit voltage, short-circuit current, and maximum power point. Its design features include a compact size and lightweight, making it suitable for mobile testing operations at photovoltaic power plants.

During the operation and maintenance of photovoltaic power plants, this device is used to quickly assess the power generation performance of photovoltaic modules. During testing, the operator connects the tester directly to the output terminal of the photovoltaic module under test and measures the electrical characteristics of the module under standard test conditions. The device's built-in measurement system automatically records voltage, current, and power data, and generates a complete IV characteristic curve. By analyzing this curve, it is possible to accurately determine whether the module has defects such as microcracks, hot spots, or aging.

In addition to basic IV curve testing, the device also supports P-V curve testing mode. In this mode, the instrument plots the power-voltage relationship curve, visually displaying the maximum power point of the photovoltaic module. This function helps O&M personnel confirm whether the module is operating at the optimal operating point, providing data for system optimization. Some models also have environmental parameter monitoring functions, which can simultaneously measure influencing factors such as irradiance and ambient temperature to improve the accuracy of test results.

The application scenarios of this device mainly include regular inspections of photovoltaic power plants, module acceptance testing, fault diagnosis, and performance evaluation. During the module acceptance phase of newly built photovoltaic power plants, this device can be used to quickly screen each module to ensure that the installed modules meet quality requirements. In the daily operation and maintenance of power plants, O&M personnel can regularly conduct sample testing of the photovoltaic array and compare it with historical data to promptly identify modules with performance degradation. When the power generation efficiency of the power plant is abnormal, this device can also be used for fault location to quickly identify the problematic modules.

Modern I-V Curve Tracer devices are usually equipped with large-capacity memory and data communication interfaces. Measurement data can be stored internally in the device or transmitted to a computer for analysis and processing via Bluetooth or USB interface. The accompanying professional analysis software can compare and analyze test data, generating standardized test reports. These features significantly improve the efficiency of photovoltaic power plant operation and maintenance work and the standardization of data management.

With the increasing demands for quality in the photovoltaic industry, the measurement accuracy and functionality of the I-V Curve Tracer device have been continuously improved. Currently, the measurement accuracy of mainstream products can reach within ±1%, meeting the testing needs of most photovoltaic power plants. This device has become an indispensable testing tool in the construction, acceptance, and operation and maintenance of photovoltaic power plants, providing effective technical support for ensuring the stable operation of photovoltaic power generation systems.
