Portable Negative Oxygen Ion Detector FT-FY1 Manual

The air in parks, mountains and seashores is especially fresh after rain because of the increased levels of negative oxygen ions in the air. These places already have a lot of negative oxygen ions, and they increase even more after the rain, making the air feel even fresher.

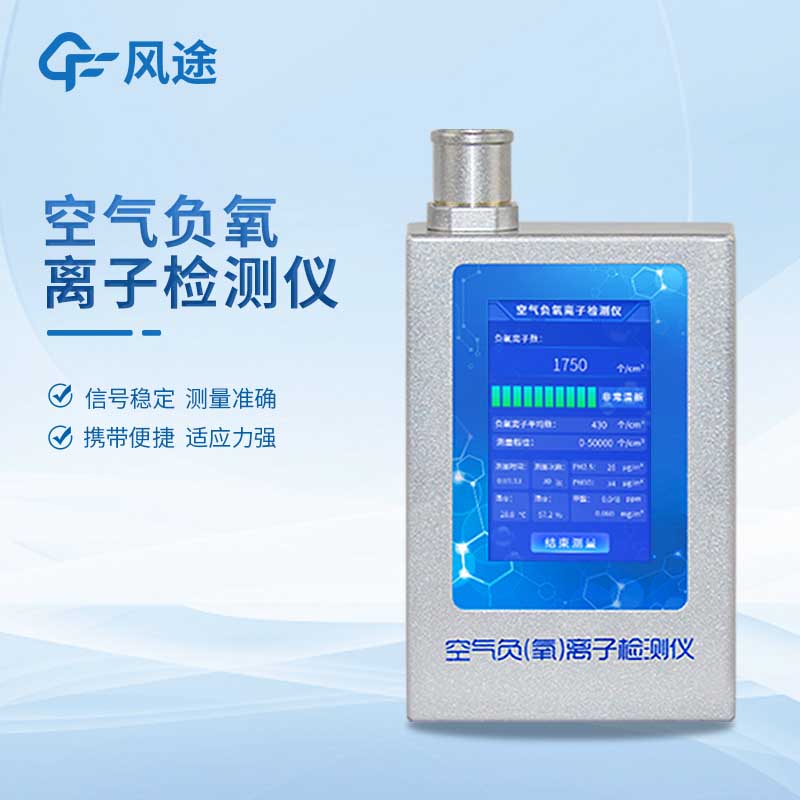

The FT-FY1 is a portable negative oxygen ion detector that uses advanced technology to accurately monitor negative oxygen ions in the air. This device is very sensitive to small particle size negative ions, providing accurate and complete data, and is powered by a 4.2V rechargeable lithium battery for convenience and practicality.

The negative oxygen ion detector features the following:

5-inch HD touch screen with real-time display of measurement results.

Adopts international standard accurate measurement method.

Compact device, suitable for various environments, easy to carry.

Equipped with high-capacity battery, can be used without power supply.

Fast data update, once per second.

Simple operation interface, easy to use.

Supports manual and automatic measurement modes.

Captures negative oxygen ions using a cylindrical capacitive structure.

Measurement range from 0 to 50 million/cm3 with ±5% accuracy.

High resolution of 1/cm3.

Mobility is between 0.4 and 1.0 cm2/V*sec.

Data update frequency is once per second.

Continuous measurement mode, communication via USB interface.

Adaptable to operating environments with temperatures from 0 to 60°C and humidity from 0 to 85% RH.

Powered by DC12V 1A adapter, internal battery supports at least 8 hours of operation.

Average power consumption does not exceed 2W.

Device size is 200mm132mm58mm, weight 1kg.

Metal casing with optional tripod.

Accessories include adapter, cleaning brush, USB cable and protective carrying case.
