Why Every Construction Site, Road, and Mine Needs a Dust Detector

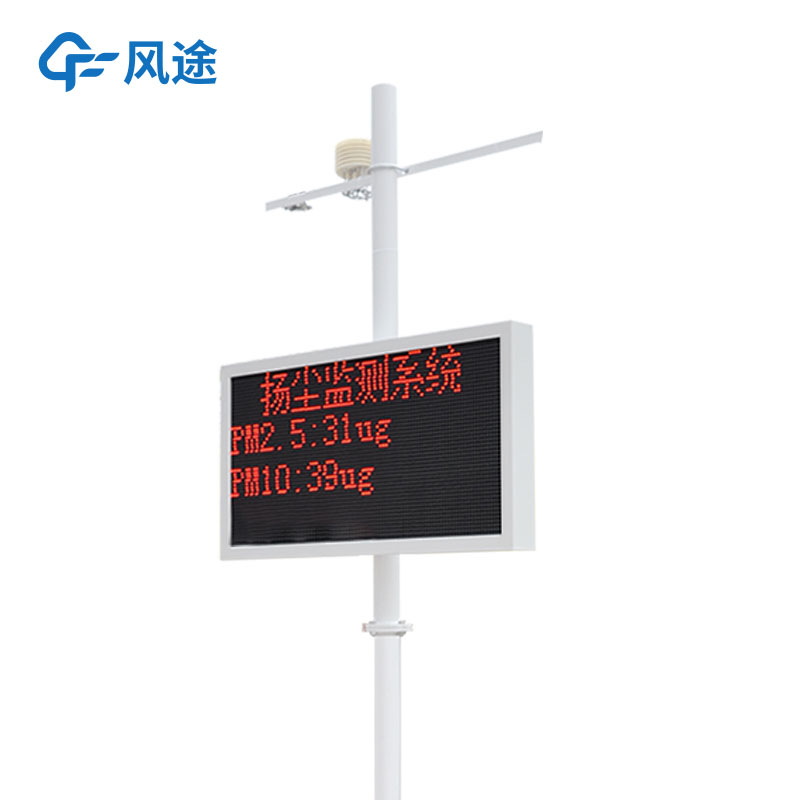

With the continuous improvement of environmental protection requirements, it has become increasingly important to accurately and real - time monitor environmental parameters. Fengtu (FT) Dust detector can efficiently monitor particulate matter and environmental parameters and is widely used in scenarios such as construction sites, road construction, and mining areas.

This monitor is highly accurate and intelligent. It is mainly used to monitor the concentration of particulate matter in the air and meteorological parameters in real - time, helping users obtain environmental quality data to meet the requirements of environmental protection supervision. It can monitor parameters such as PM2.5, PM10 (TSP can be optionally equipped), temperature, humidity, wind speed, wind direction, atmospheric pressure (depending on the model), and noise (optional). It can also be linked with a camera to capture scenes when the standards are exceeded (video monitoring is optional). It supports 4G/WiFi/wired network transmission, and the data is uploaded to the Environmental Protection Bureau platform or a private cloud platform in real - time. The data update frequency can be adjusted from 1 minute to 1 hour. Once the data exceeds the standard, local audible and visual alarms will be issued, and at the same time, the alarm information will be automatically pushed to the mobile phones of managers or the platform. The instrument has a built - in large - capacity storage, which is convenient for querying historical data and can also be exported in Excel or PDF format.

Its technical parameters are as follows: the measuring range of PM2.5 is 0 - 1000 μg/m³, with an accuracy of ±10% @25℃; the measuring range of PM10 is 0 - 2000 μg/m³, with an accuracy of ±10% @25℃; the temperature measuring range is - 40 - 80℃, with an accuracy of ±0.5℃; the humidity measuring range is 0 - 100% RH, with an accuracy of ±3% RH; the wind speed measuring range is 0 - 60 m/s, with an accuracy of ±0.3 m/s; the noise measuring range is 30 - 130 dB (optional), with an accuracy of ±0.5 dB.

This instrument is based on the laser scattering principle of the particulate matter sensor, has strong anti - interference ability and stable data, and has also passed the CPA certification and third - party testing. It reaches the IP65 protection level and can work in harsh outdoor environments such as high temperatures, wind, rain, and sand. It has a solar power supply system (optional) to solve the power supply problem in areas without mains electricity. It can be connected to government regulatory platforms (such as local environmental protection bureaus) or enterprise - built platforms to achieve unified management of multiple devices.

Fengtu Dust detector has a wide range of applications. In construction, it meets the environmental protection requirements of "smart construction sites" and controls construction site dust. In road transportation, it monitors road dust and the spillage of muck trucks. In mining areas / storage yards, it monitors the dust pollution of ore and coal storage yards. In urban management, it evaluates the air quality of municipal engineering and demolition areas. The installation is pole - mounted with an adjustable height and can be deployed within 2 hours. Maintenance is also convenient. The sensor is automatically calibrated, and the filter membrane replacement cycle is 3 - 6 months (adjusted according to the environment).

Fengtu Dust detector is powerful, reliable in performance, and widely applicable, contributing to the environmental protection cause. If you have more questions about the product, please feel free to contact us. We will provide detailed information and professional answers.
