Total radiation recorder

1.Total radiation recorder product introduction

Total radiation recorder is used to monitor the change of solar irradiance and can provide data support for all kinds of emergency solar radiation monitoring.FT-BF1Total radiation recorder is a high-precision automatic meteorological observation device with high integration, low power consumption, quick installation and convenient use for field monitoring.

The equipment is debugging-free and can be quickly deployed.It is suitable for obtaining meteorological data such as various types of emergency short-term meteorological observations and mobile meteorological monitoring.It is widely used in the measurement of solar radiation energy in meteorology, solar energy utilization, agriculture and forestry, aging of building materials, and atmospheric environment monitoring.

This product complies with the technical specifications of ISO9060 and WMO World Meteorological Organization (CIMO Guide).

This product complies with the requirements of the latest Chinese meteorological standard "GB∕T 19565-2017 Global Radiation Sensor".

2.Total radiation recorder product features

1.Small size, portable, convenient for monitoring in different environments

2.Fully encapsulated, easy to install, simple to operate, can be installed by one person with bare hands

3.GPRS networking

4.Can be connected to mobile devices to view test data anytime and anywhere

5.Support modbus485 sensor expansion

6.Built-in large-capacity lithium battery, ultra-long standby time

7.Support MQTT IoT protocol transmission

8.Supporting IoT data display, storage and analysis platform

3.Total radiation recorder technical indicators

1.Built-in interface

Modbus485 interface: GX-12-4P aviation plug, output power supply voltage 12V

Device configuration interface: GX-12-4P aviation plug, input voltage 5V

Collector power supply interface: GX-12-3P aviation plug, input voltage 5V, with RS232 output

2.Power supply

Built-in lithium battery power supply: DC12V±0.5V peak current 10A

Lithium battery: 12000maH DC10.8-12.6V

Working hours: 24*9 hours (9 days)

Charger: 12.6V/5A

3.Parameters

Working environment: -10~+45℃, humidity ≤100% without condensation

Communication mode: support modbus485, support RS232 data output

Working current: <170mA

External sensor protocol: modbus485

Maximum number of external sensors: 5

External sensor voltage: 12V

Data upload interval: 30s-65535s

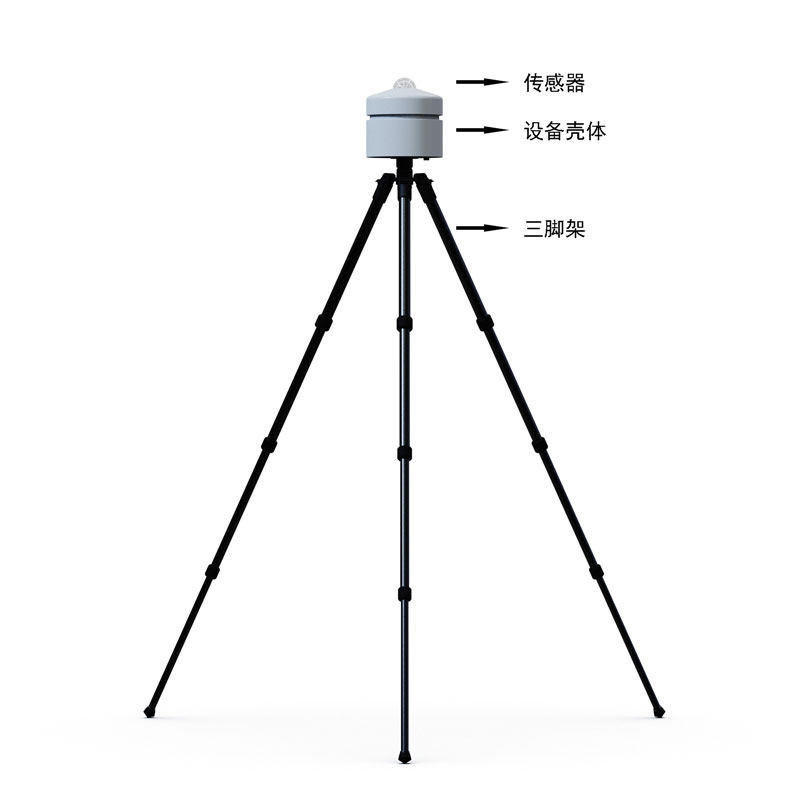

4.Total radiation recorder product structure diagram

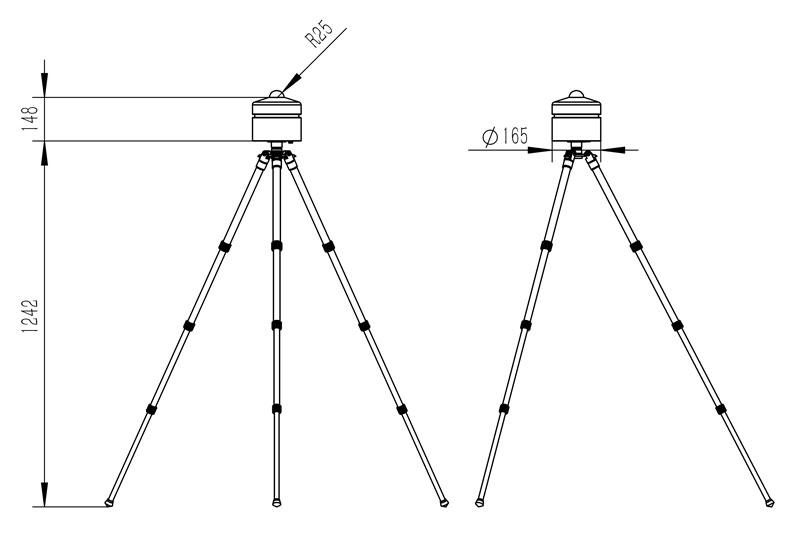

5.Total radiation recorder product dimensions

6.Total radiation recorder host computer software introduction

1.PC stand-alone version of data receiving, storage, viewing and analysis software

2.Support serial port data reception, processing and display

3.Support json string, modbus485 and other communication methods

4.The storage time can be set by yourself, and the acquisition time can be set by yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

7.Total radiation recorder Android APP introduction

1.Android stand-alone data receiving, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software receives and processes the data in the background after the phone goes into sleep mode

4.Automatically add devices with json data, and modbus devices support adding devices by scanning codes

5.Support historical data viewing, analysis, and table export, support curve display, and single data point viewing.

6.Support data post-processing function

7.Support external running of javascript scripts

8.Introduction to Total Radiation Recorder Cloud Platform

1.CS architecture software platform, supports direct observation through mobile phones and PC browsers, without the need to install additional software.

2.Support multiple accounts and multiple devices login

3.Support real-time data display and historical data display dashboard

4.Cloud servers and cloud data storage are stable and reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
