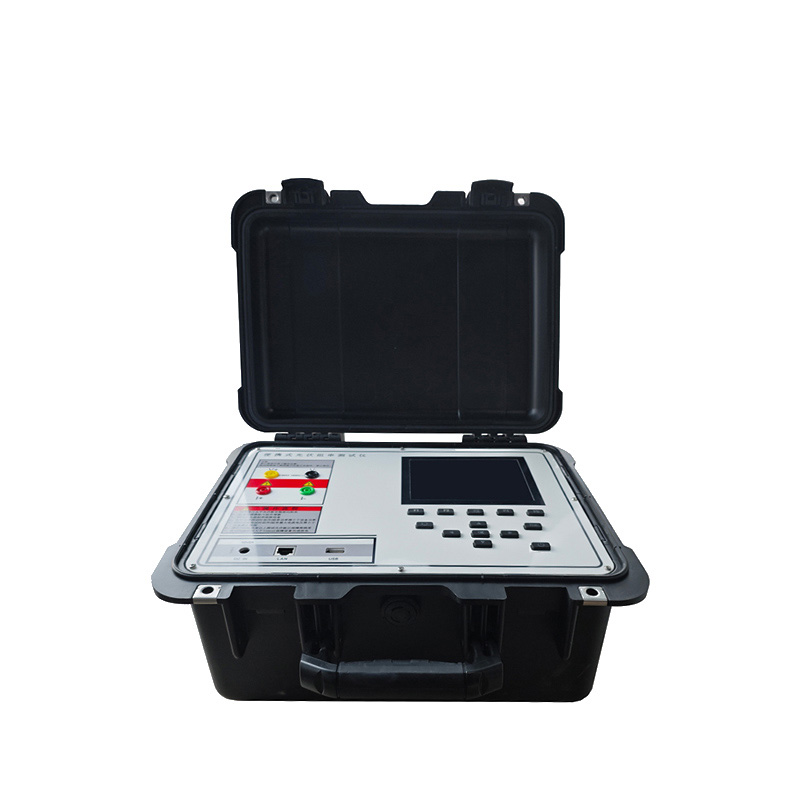

I-V Curve Tracer: Outdoor Measurement Equipment for Photovoltaic Module Current-Voltage Characteristic Testing

I-V Curve Tracer is a photovoltaic testing tool specifically designed for outdoor environments, used to measure the current-voltage characteristics of photovoltaic modules. It supports testing up to 1500V voltage and 30A current, and can evaluate key parameters such as open-circuit voltage, short-circuit current, and maximum power of 30kW modules.

I-V Curve Tracer is a portable device designed for on-site testing of photovoltaic power plants. Its core function is to directly measure the current-voltage characteristic curve of photovoltaic modules or small arrays under natural sunlight conditions. This device aims to solve the problem of performance evaluation of photovoltaic modules in real outdoor working environments. The measurement data is crucial for determining the health status of the modules, diagnosing system faults, and verifying power generation performance.

The basic working principle of this tester is to apply a scanning load from short circuit to open circuit at the module output terminal and simultaneously collect voltage and current values at high speed, thereby plotting a complete I-V curve. Based on this curve, the device can automatically calculate and display a series of key performance parameters, including open-circuit voltage, short-circuit current, maximum power point power, fill factor, and conversion efficiency. By comparing these measured values with the nominal values or initial test values of the module, it is possible to quickly determine whether the module has problems such as power degradation, microcracks, hot spots, or wiring faults.

A prominent feature of this device is its outdoor adaptability design. It has a wide range of electrical testing capabilities, typically supporting DC voltages up to 1500 volts and current inputs up to 30 amperes, covering most common specifications of single modules and even module strings of a certain size (such as 30 kilowatts). It integrates high-precision sensors and data processing units, allowing for rapid testing under on-site sunlight conditions. The robust casing and good sealing performance ensure reliable operation in various outdoor environments. Operationally, it is usually equipped with an intuitive touchscreen interface and can store or directly transfer test data to a computer for analysis.

I-V Curve Tracer is used throughout the entire life cycle of photovoltaic systems. Before module installation, it can be used for random inspection of incoming modules to verify whether the actual power meets the standards. During the later stages of power plant construction and grid connection acceptance, it is an essential tool for verifying whether the output performance of the entire string or array meets the design requirements. During the long-term operation and maintenance of power plants, O&M personnel regularly use this equipment for inspections, effectively identifying individual components with degraded performance and replacing them promptly to minimize power generation losses. Furthermore, in the field of photovoltaic research and development, this equipment supports empirical testing and data collection of new experimental cells or modules in real outdoor environments, providing a basis for technological improvements.

In the operation and maintenance system of photovoltaic power plants, I-V Curve Tracer provides a direct and quantitative diagnostic method. Compared to relying solely on monitoring systems to view power generation data, IV curve testing can more accurately pinpoint the root cause of problems, distinguishing between component issues, connection problems, or inverter issues. Its portability and rapid testing capabilities make preventive maintenance and troubleshooting in large-scale power plants more efficient and economical. As photovoltaic technology continues to develop and power plant scales expand, accurate and efficient on-site testing tools are of irreplaceable practical value in ensuring the safety of power plant assets and improving power generation efficiency.
