Tackling Power Quality Woes: The Function of Power Quality Analyzers

According to the statistical data provided by the European Union, the United States, and the International Copper Association, the problem of poor power quality has caused losses of up to hundreds of billions of dollars to enterprises! For example, in an automobile manufacturing plant, voltage sags can greatly reduce the welding quality of robotic welders, often requiring the welded parts to be reheated or the welding process to be restarted. Harmonics can damage the insulation of motors, causing the motors to overheat and eventually burn out. The problem of low power factor also forces enterprises to pay power factor adjustment charges.

Voltage sags, harmonics, low power factor, three - phase imbalance, etc. are all common power quality problems. These problems not only have a negative impact on the production and operation of enterprises, but also lead to increased energy consumption and greatly shorten the service life of equipment.

Therefore, power quality monitoring is very necessary. Through real - time monitoring, problems in power quality can be detected in a timely manner, providing reliable data support for subsequent treatment work.

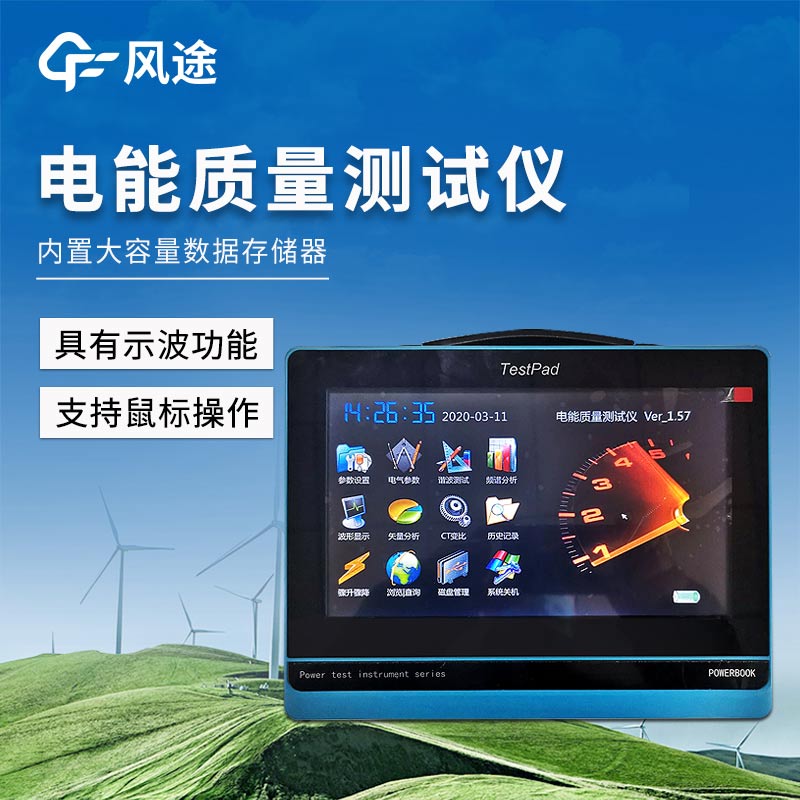

Power Quality Analyzers have multi - channel measurement capabilities and can simultaneously measure 4 voltage and 4 current channels. They can measure a variety of electrical parameters such as voltage, current, power, and harmonics, and have transient parameter measurement and waveform recording functions. They have oscilloscope and hexagon diagram display functions, can perform vector analysis and wrong wiring inspection, and can automatically calculate and recover electricity charges. A large - sized clamp meter can be optionally configured to measure the transformation ratio and phase angle difference of transformers. They have a large data storage capacity, support USB flash drive storage, and are equipped with analysis software to generate professional reports. They use a 10 - inch large - screen capacitive screen, support touch and mouse operations, and are easy to operate.

It has a wide measurement range and high accuracy. For example, the accuracy of voltage effective value is ≤0.1%, and the deviation of current effective value is ≤0.3%. It can adapt to an ambient temperature of - 20°C to 50°C and a relative humidity of 0 - 95%. It is small in size, light in weight, and low in power consumption. The built - in battery can provide a battery life of more than 8 hours, which is convenient for on - site use.
