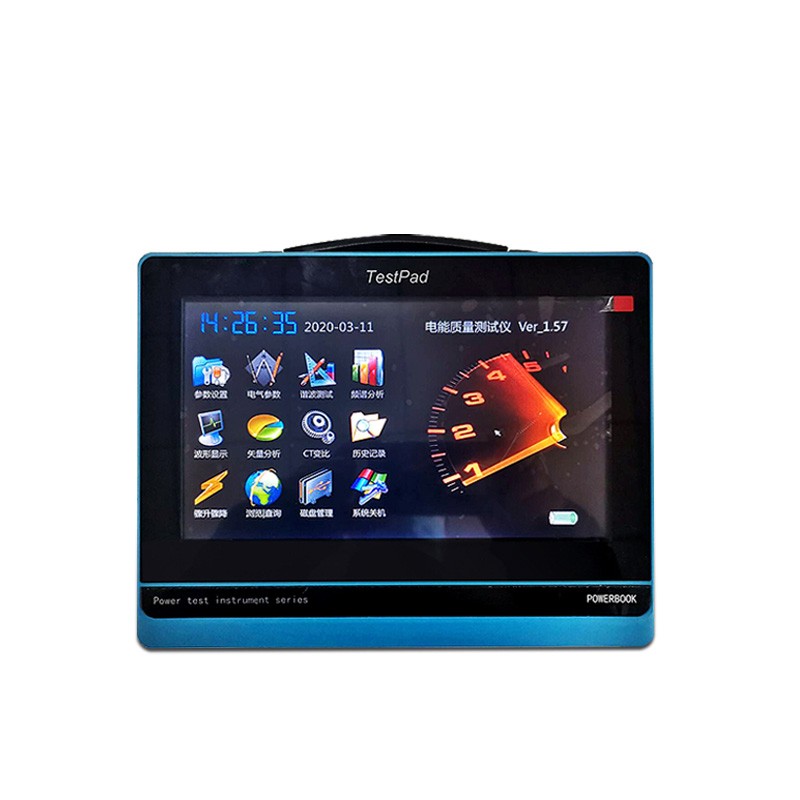

Power Quality Monitoring Equipment Enables Precise Real-Time Monitoring of Multi-Dimensional Power Grid Parameters

Power Quality Monitoring Equipment features a multi-channel synchronous measurement architecture, enabling comprehensive acquisition of core parameters of the power grid, including electrical parameters, harmonics, flicker, and three-phase imbalance. Its high-precision resolution allows for real-time monitoring, providing reliable data support for power grid fault diagnosis, energy consumption optimization, and compliant power quality management.

Power Quality Monitoring Equipment is a core power grid monitoring device used in power operation and maintenance, industrial and mining enterprises, and new energy grid connection scenarios. It relies on multi-channel synchronous measurement technology to achieve comprehensive, accurate, and real-time acquisition of various power grid operating parameters. This allows for precise identification of various quality hazards in power grid operation and adapts to various industrial power consumption and power operation and maintenance monitoring needs. The device is equipped with four voltage channels and four current channels, supporting simultaneous acquisition of eight signals. This overcomes the data lag problem of traditional single-channel equipment's step-by-step measurement, ensuring the synchronization and consistency of multi-parameter measurement data and adapting to the complex operating conditions of three-phase power grids.

Power Quality Monitoring Equipment possesses comprehensive electrical parameter measurement capabilities, simultaneously acquiring basic grid parameters such as voltage amplitude, current amplitude, phase, frequency, active power, reactive power, and power factor, covering all core indicators required for conventional power testing. In harmonic detection, the equipment can accurately calculate the content of voltage and current harmonics from the 2nd to the 64th order, while also accurately calculating the total harmonic distortion rate, comprehensively capturing grid harmonic distortion problems and resolving common faults such as equipment losses and grid interference caused by excessive harmonics. For dynamic grid fluctuations, the equipment supports accurate measurement of short-term flicker, long-term flicker, and voltage fluctuations, recording real-time dynamic changes in grid voltage and accurately identifying abnormal voltage fluctuation conditions.

Three-phase imbalance is a common fault in grid operation. Power Quality Monitoring Equipment can accurately detect the positive, negative, and zero-sequence parameters of voltage and current, simultaneously calculating the voltage and current imbalance degree, providing accurate data for three-phase grid balancing and commissioning. The equipment boasts a wide measurement range and ultra-high detection resolution. Voltage measurement ranges from 0-900V, and current measurement can be adapted to various operating conditions using different clamp meters. Phase, frequency, and power parameters all possess high-precision resolution capabilities. Its stable hardware architecture and comprehensive detection functions make it widely applicable in scenarios such as power grid inspection, industrial energy consumption monitoring, and new energy grid connection testing. It effectively helps users identify potential power quality issues, optimize power usage plans, improve power efficiency, and ensure the stable and efficient operation of the power grid.
