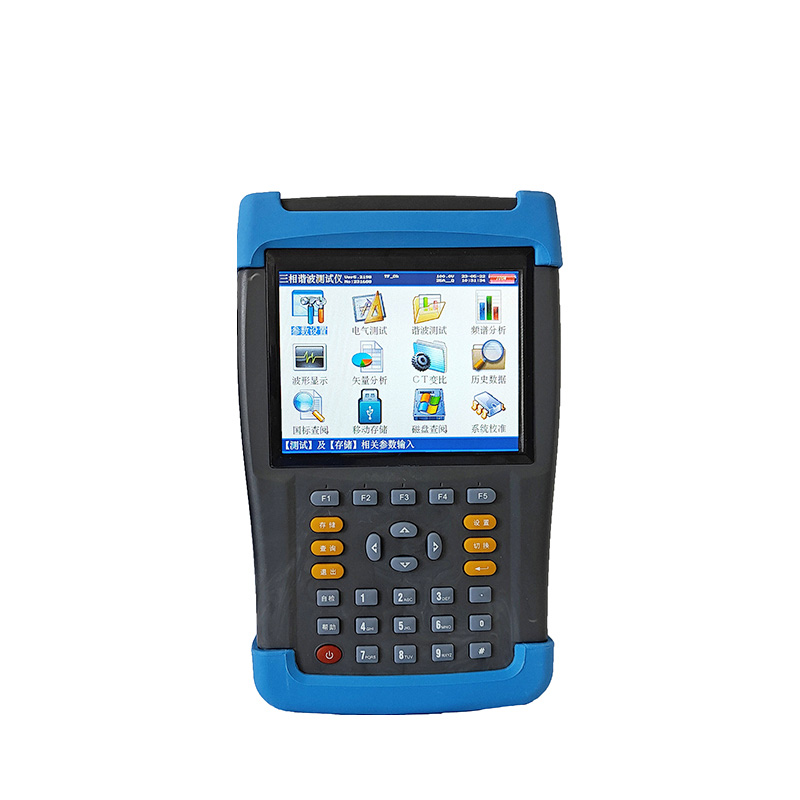

Portable Power Quality Analyzers for Power Grid Monitoring and Troubleshooting

Power Quality Analyzers is a portable instrument used to monitor power quality in power systems. It can detect waveform distortion, harmonic content, and three-phase imbalance, accurately measuring various electrical parameters for power supply fault diagnosis, data recording, and report generation, ensuring safe and reliable power supply.

Power Quality Analyzers is a portable professional device used to assess the power supply status of power systems. This instrument can monitor and record various power quality events in the power grid in real time. Its core function is to identify and quantify problems in the power supply system, such as voltage spikes and drops, voltage interruptions, transient overvoltages, waveform distortion (including harmonics and interharmonics), frequency deviations, and three-phase voltage or current imbalances. By capturing these anomalies, the instrument helps users diagnose the root causes affecting the normal operation of equipment and the reliability of power supply.

The instrument has high-precision multi-parameter measurement capabilities. It can simultaneously measure and record the true RMS values of voltage and current, and calculate active power, reactive power, apparent power, power factor, and phase angle. For AC systems, it can accurately measure the fundamental frequency. In harmonic analysis, the instrument typically follows standards such as IEC 61000-4-30 to perform spectral analysis of voltage and current, measuring harmonic content and distortion rates up to dozens of orders. All measurement data can be visually displayed on the instrument's screen in the form of trend graphs, waveforms, or spectrum diagrams, and long-term storage is supported.

The instrument's application spans the entire process of power supply system installation, commissioning, operation and maintenance, and troubleshooting. In fault finding, engineers utilize its portability to quickly locate power quality disturbances causing downtime or damage to sensitive equipment. Regarding power quality recording, it can perform long-term unattended monitoring, collecting data to assess whether the power quality health status of specific sites or equipment meets national standards or contractual agreements. Finally, the instrument's accompanying software can analyze massive amounts of monitoring data, automatically generating detailed test reports, providing authoritative data for power supply system upgrades, filter configuration, or liability determination. Therefore, it has become an indispensable tool for ensuring the safe, high-quality, and economical operation of modern power systems.
