Drone Visibility Weather Instrument

Model：FT-F4

Brand：fengtu

Drone Visibility Weather Instrument is designed for monitoring and collecting visibility and other meteorological data during flight of unmanned aerial vehicles or small unmanned inspection aircraft.

Get a Free Quote

Related products

1、Drone Visibility Weather Instrument Product Introduction

Drone Visibility Weather Instrument is designed for monitoring and collecting visibility and other meteorological data during flight of unmanned aerial vehicles or small unmanned inspection aircraft.F4 Drone Visibility Weather Instrument can measure meteorological parameters including: wind speed, wind direction, temperature, humidity, air pressure, and forward-scattered visibility (10km). It adopts an integrated structure, designed and manufactured for use on drone platforms, prioritizing lightweight, small size, low wind resistance, and low power consumption, allowing it to operate normally in light rain conditions.

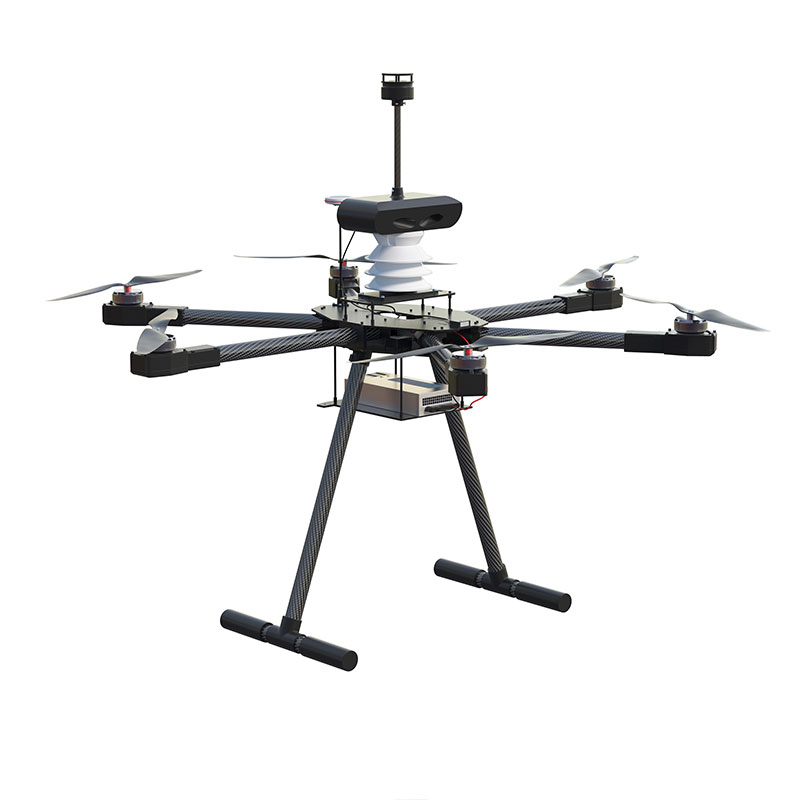

Drone Visibility Weather Instrument can be mounted on the top of the drone or suspended from its belly. Lightweight and robust engineering ABS material is used, and lightweight aluminum alloy is also available. Individual parameter detection modules can be selected according to user needs, or any combination of modules can be used.

2、Drone Visibility Weather Instrument Technical parameters

Name	Measurement range	Precision	Resolution
Wind speed	0-60m/s	±3 percent	0.1m/s
Wind direction	0-359°	±3°	1°
Temperature	-40℃－+80℃	±0.5℃	0.1℃
Humidity	0－100%	±5 percent	1
Atmospheric pressure	300－1100hPa	±1	0.1hPa
Visibility	20-10000m	±10 percent	1m
Digital output	RS232, RS485, TTL (one of them)
Communication baud rate	4800-19200
Communication protocol	ModBus, NMEA-0183, ASCII
Power supply voltage, power consumption	VDC:7-24V/0.5W
Dimensions/Weight	Φ70*100mm/0.28kg
Case color/material	Black/ABS/Aluminum alloy (anodized)
