Meteorological, Soil and Water Environmental Monitoring Station

1、Meteorological, Soil and Water Environmental Monitoring Station Product Introduction

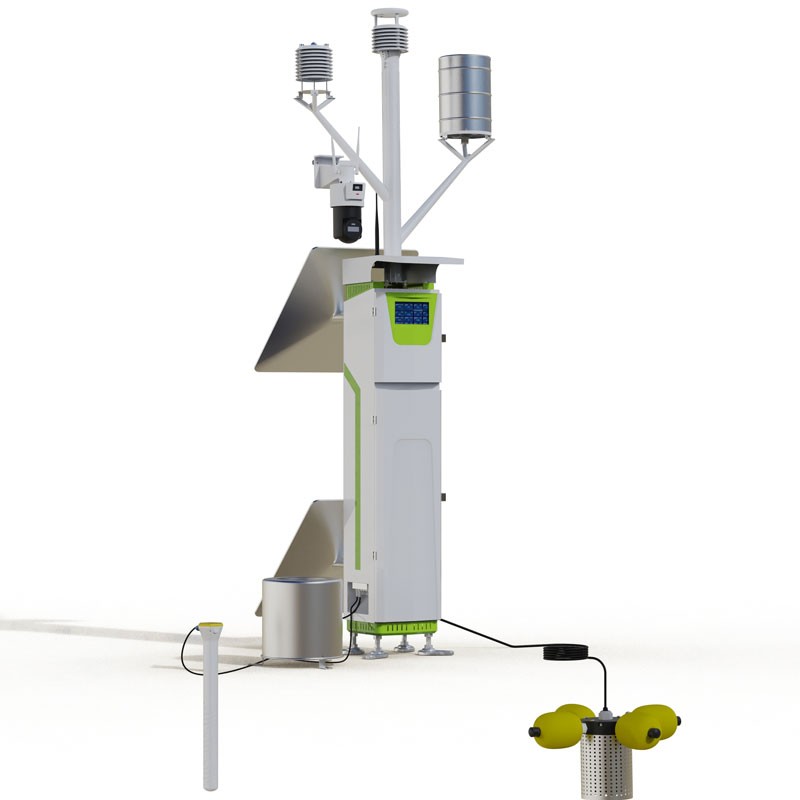

Meteorological, Soil and Water Environmental Monitoring Station integrates meteorological observation, soil monitoring, and water quality testing, providing accurate monitoring data.Meteorological, Soil and Water Environmental Monitoring Station is a highly integrated environmental monitoring system that integrates meteorological, soil, and water quality data. The system integrates data acquisition, storage, and transmission, and is developed and manufactured according to international WMO meteorological standards. It can simultaneously monitor ultrasonic wind speed, wind direction, air temperature, air humidity, atmospheric pressure, rainfall, sunlight, carbon dioxide, PM2.5, PM10, noise, three-layer pipe soil temperature, soil moisture, soil conductivity, and soil evaporation; and water quality parameters such as pH, water temperature, water conductivity, turbidity, and dissolved oxygen.

Meteorological, Soil and Water Environmental Monitoring Station consists of three parts: monitoring sensors, a data acquisition unit, and an environmental monitoring cloud server. The system adopts a modular design, allowing for flexible addition or removal of modules and sensors according to user needs. The system has a built-in large-capacity FLASH storage chip that can store more than one year's worth of meteorological data. It is equipped with a Chinese character LCD screen for real-time observation of current meteorological information. When connected to a computer, data can be viewed item by item and exported to Excel for editing.

2、Meteorological, Soil and Water Environmental Monitoring Station Product Advantages

Advanced technology, high measurement accuracy

Large data capacity, long storage time

Long telemetry distance, stable communication

User-friendly interface, easy operation

High reliability, low maintenance cost

3、Meteorological, Soil and Water Environmental Monitoring Station Product Positioning

Meteorological, Soil and Water Environmental Monitoring Station supports wireless transmission, requires no debugging, can be quickly deployed, and is widely used in the following fields:

Meteorological, agricultural, forestry, and marine environmental monitoring

Airports, ports, and transportation

Geological exploration and university research

4、Meteorological, Soil and Water Environmental Monitoring Station Features and Functions

Low-power data logger: Power consumption less than 50mA

GPRS connectivity: Supports 4G across three networks

Supports expanded sensors

7-inch LCD screen display

Supports data storage

Expandable USB flash drive data export

Supports Modbus-RTU-RS485 sensor expansion

Solar charging management: MPPT automatic power point tracking

Equipped with 100W/40Ah solar power supply

Supports IoT data display, storage, and analysis platform

Platform supports multiple protocol data forwarding, including HJ-212, TCP short connections, and HTTP.

5、Meteorological, Soil and Water Environmental Monitoring Station Technical parameters
