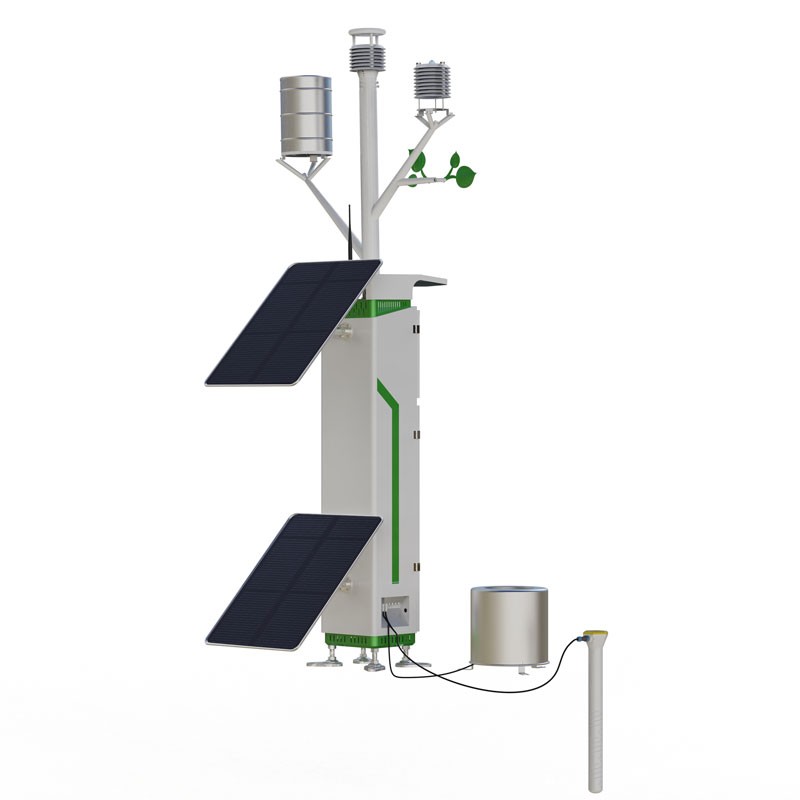

Meteorological and Soil Environmental Monitoring Station

1、Meteorological and Soil Environmental Monitoring Station Product Introduction

Meteorological and Soil Environmental Monitoring Station can monitor and record various meteorological parameters in the environment in real time, and monitor meteorological and soil environmental conditions.Meteorological and Soil Environmental Monitoring Station is a highly integrated environmental monitoring system for meteorological and soil data. The system integrates data acquisition, storage, and transmission, and is developed and manufactured according to international WMO meteorological standards. It can simultaneously monitor ultrasonic wind speed, wind direction, air temperature, air humidity, atmospheric pressure, rainfall, sunlight, carbon dioxide, PM2.5, PM10, noise, three-layer pipe soil temperature, soil moisture, soil conductivity, and soil evaporation.

Meteorological and Soil Environmental Monitoring Station consists of three parts: monitoring sensors, a data acquisition unit, and an environmental monitoring cloud server. The system adopts a modular design, allowing for flexible addition or removal of modules and sensors according to user needs. The system has a built-in large-capacity FLASH storage chip that can store more than one year's worth of meteorological data. It is equipped with a Chinese character LCD screen for real-time observation of current meteorological information. When connected to a computer, data can be viewed item by item and exported to Excel for editing.

2、Meteorological and Soil Environmental Monitoring Station Product Advantages

Advanced technology, high measurement accuracy

Large data capacity, long storage time

Long telemetry distance, stable communication

User-friendly interface, easy operation

High reliability, low maintenance cost

3、Meteorological and Soil Environmental Monitoring Station Product Positioning

Meteorological and Soil Environmental Monitoring Station supports wireless transmission, requires no debugging, can be quickly deployed, and is widely used in the following fields:

Meteorological, agricultural, forestry, and marine environmental monitoring

Airports, ports, and transportation

Geological exploration and university research

4、Meteorological and Soil Environmental Monitoring Station Features and Functions

Low-power data logger: Power consumption less than 50mA

GPRS connectivity: Supports 4G across three networks

Supports expanded sensors

7-inch LCD screen display

Supports data storage

Expandable USB flash drive data export

Supports Modbus-RTU-RS485 sensor expansion

Solar charging management: MPPT automatic power point tracking

Equipped with 100W/40Ah solar power supply

Supports IoT data display, storage, and analysis platform

Platform supports multiple protocol data forwarding, including HJ-212, TCP short connections, and HTTP.

5、Meteorological and Soil Environmental Monitoring Station Technical parameters
