Power Quality Monitoring Equipment multi-channel measurement instrument meets the monitoring needs of power systems

Power Quality Monitoring Equipment instrument has the capability to simultaneously measure four voltage and four current channels, detecting voltage and current amplitude, phase, frequency, power, and harmonic content from the 2nd to the 64th order. It is suitable for power quality analysis at all stages of generation, transformation, and consumption.

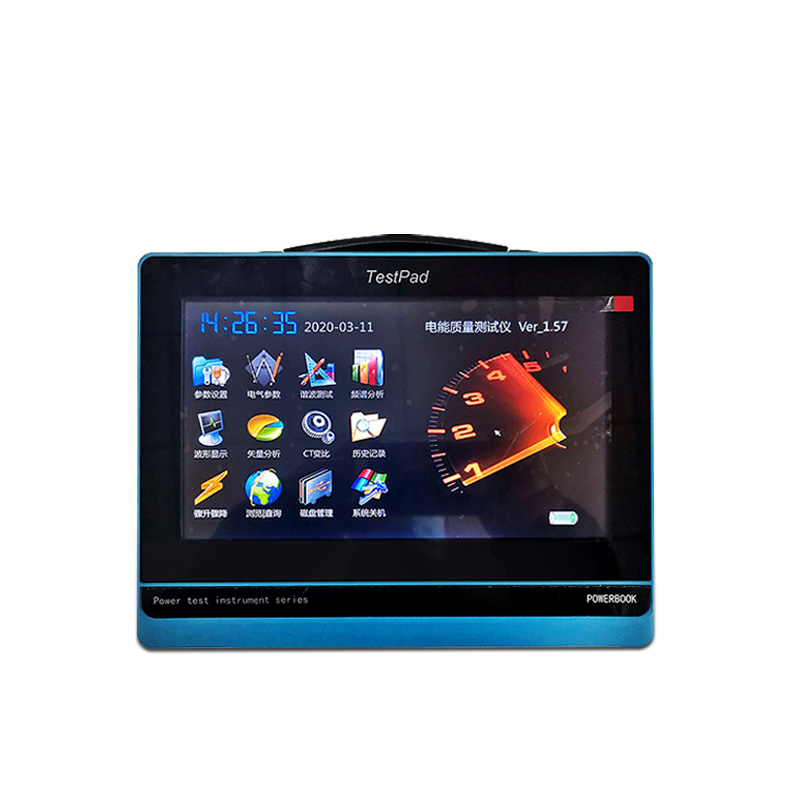

Power Quality Monitoring Equipment instrument is a specialized instrument for detecting and analyzing power grid operation quality. It is mainly used to measure power quality issues such as voltage deviation, frequency fluctuation, harmonic distortion, and three-phase imbalance. This instrument has multi-channel measurement capabilities, typically configured with four voltage channels and four current channels operating simultaneously, acquiring complete power parameter data at the same time. This multi-channel synchronous sampling design has significant advantages in field testing, enabling simultaneous measurement of three-phase voltage and current signals and avoiding time difference errors caused by time-division measurement.

In terms of functional parameters,Power Quality Monitoring Equipment can simultaneously measure various electrical parameters such as voltage amplitude, current amplitude, phase, frequency, active power, reactive power, and power factor. In harmonic analysis, these instruments typically measure voltage and current harmonics from the 2nd to the 64th order, with some models even capable of measuring the content of harmonics up to the 63rd order and total harmonic distortion. They can also measure voltage fluctuations, flicker, and voltage imbalance. A power quality analyzer is a comprehensive testing instrument that combines electrical parameter testing and vector analysis functions.

Based on usage scenarios, power quality analyzers are mainly divided into portable and online types. Portable power quality analyzers are small and lightweight, making them easy to carry to the field for troubleshooting and data acquisition. They are usually equipped with a large LCD screen and touchscreen operation, allowing users to quickly view three-phase voltage and current waveforms, harmonic histograms, and other data on-site. Online power quality monitoring devices focus on 24/7 continuous monitoring and are typically installed in substations, grid-connected cabinets, etc. They have remote communication capabilities, can upload data to the backend system in real time, and automatically record events such as voltage dips, spikes, and interruptions.

Power Quality Monitoring Equipment is applicable to all aspects of power systems, including power generation, transformation, and consumption. On the industrial user side, it can help companies troubleshoot abnormal equipment shutdowns and analyze whether there are harmonic exceedances or voltage fluctuations. In renewable energy grid-connected scenarios, online monitoring devices can continuously assess the power quality of the inverter output.
